Explore our flagship 12V / 24V DC brushless water booster and circulating pumps engineered for thermal stability, whisper-quiet operation, and long service life.
Analyzing the technological transition from traditional AC induction circulation pumps to modern micro Brushless DC (BLDC) magnetic-drive fluid systems.
The global market for liquid heating, residential tankless water heaters, solar thermal circulation, heat pumps, smart sanitary warm-water bidets, and electric vehicle (EV) battery thermal management is undergoing a structural paradigm shift. According to recent industrial fluid dynamics reports, global demand for highly efficient, compact, and low-noise custom pump for heater systems is expanding at a CAGR of 8.4% through 2030. Driven by strict energy-efficiency mandates (such as the EU's ErP Directive and US DOE regulations) and consumer demand for instant hot water, global original equipment manufacturers (OEMs) are replacing legacy AC pumps with advanced Brushless DC (BLDC) circulation pumps.
Traditional AC pumps suffer from lower electrical-to-hydraulic efficiency (often below 25%), high heat generation within the motor body, vibrational acoustic resonance, and susceptibility to impeller calcification under high-temperature water conditions. In contrast, custom BLDC heater pumps utilize 3-phase electronically commutated permanent magnet rotors driven by intelligent pulse-width modulation (PWM) or 0-10V signals. This architecture enables dynamic speed adaptation, precise flow rate control, and instant thermal response while consuming up to 65% less power.
Deep-dive into component selection, hydraulic design, thermal endurance, and intelligent control algorithms.
Engineered using automotive-grade Polyphenylene Sulfide (PPS) and high-density Zirconia ceramic shafts. Capable of continuous fluid temperatures up to 100°C (212°F) and peak fluid bursts up to 125°C without structural thermal creep or seal degradation.
Integrated Field-Oriented Control (FOC) sensorless vector algorithms permit infinitely variable speed adjustment via PWM or 0-10V interfaces. Enables direct integration with smart thermostat mainboards for automated fluid temperature regulation.
Embedded firmware automatically detects dry-running, rotor lock, over-current, over-voltage, thermal overload, and reverse polarity. Upon fault detection, the pump executes soft-restart sequences to protect the host appliance.
| Engineering Metric | Standard AC Booster Pump | RETO Custom BLDC Heater Pump | OEM Application Advantage |
|---|---|---|---|
| Operating Voltage | 110V / 220V AC Fixed | 12V DC / 24V DC / 48V DC Low Voltage | Safe human contact; ideal for bathroom & wet appliances |
| Motor Efficiency | 20% - 30% Efficiency | 65% - 85% High Efficiency | Dramatically reduced power consumption & carbon footprint |
| Noise Level (1m) | 48 - 58 dB(A) High Vibration | 32 - 42 dB(A) Ultra Silent | Essential for bedroom-adjacent hot water mattresses & bidets |
| Fluid Temp Endurance | Max 60°C (140°F) | Max 100°C (212°F) Continuous | Maintains hydraulic integrity under boiling water conditions |
| Sealing System | Mechanical Shaft Seal (Prone to Leak) | Magnetic Drive Static Seal (Zero Leakage) | Eliminates liquid ingress into drive electronics entirely |
| Speed Modulation | None (Single Speed) | PWM / 0-10V / Speed Feedback Output | Enables closed-loop IoT smart temperature management |
Located in Xiamen, Fujian, Xiamen Reto Electric Appliances Co., Ltd. combines advanced automation, deep supply chain integration, and rigorous quality standards to deliver world-class BLDC pump solutions.
When global enterprise buyers evaluate a custom pump for heater supplier or manufacturer, China’s industrial ecosystem offers unmatched advantages in agility, component sourcing, production scaling, and total cost of ownership (TCO). As a recognized National High-Tech Enterprise, Gazelle Enterprise, and SRDI (Specialized, Refined, Differential, Innovative) certified pump innovator, Xiamen Reto Electric Appliances Co., Ltd. stands at the forefront of China's micro-pump manufacturing industry.
With over 10 years of R&D experience and an annual output capacity exceeding 2,000,000 units, RETO operates automated stator winding, high-precision rotor balancing, and computerized hydraulic testing lines. Every single pump unit undergoes 100% full-parameter inspection before leaving the plant.

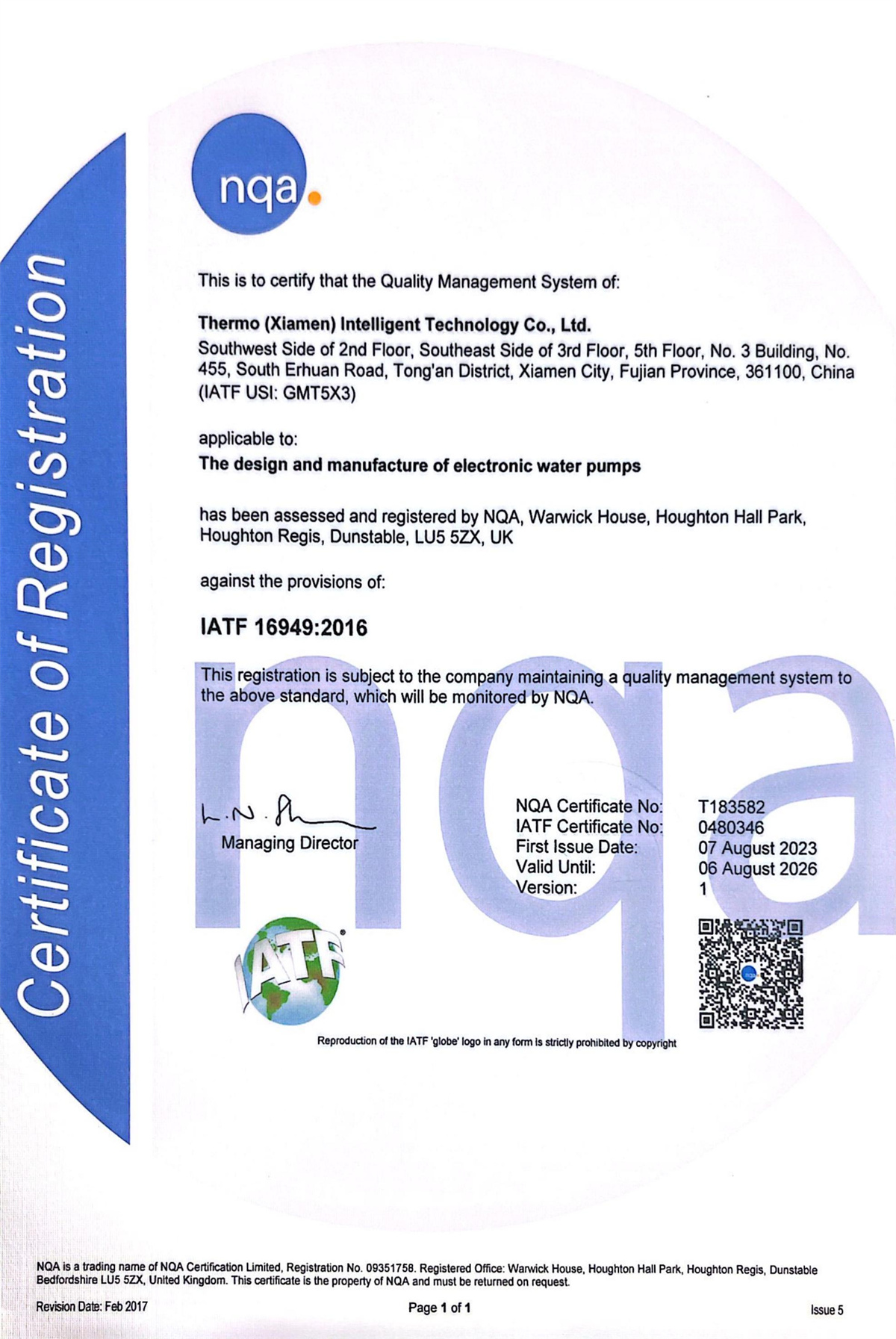

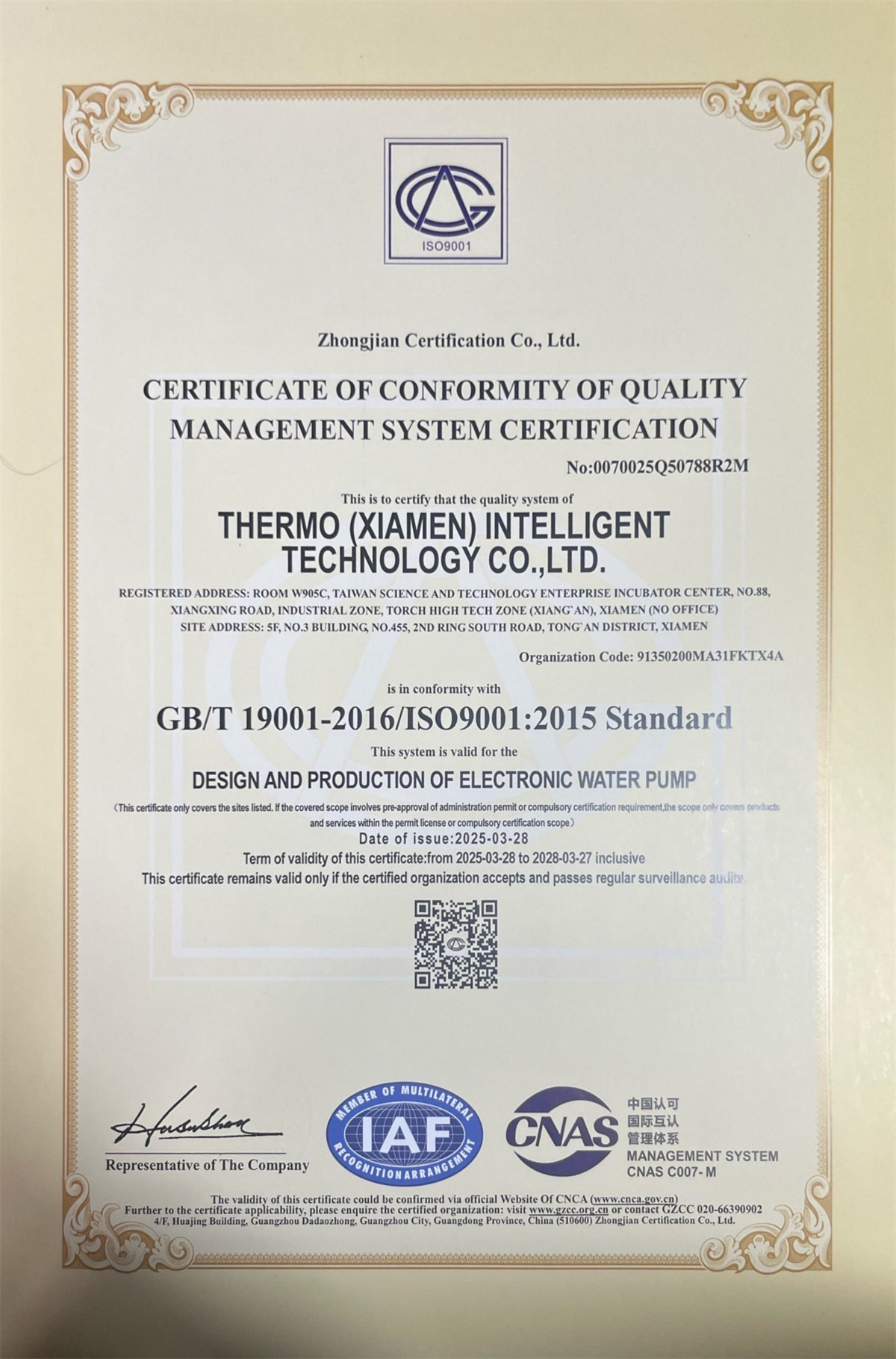

RETO strictly adheres to international quality management frameworks including ISO 9001 and automotive-grade IATF 16949. All product series carry CE, TÜV, RoHS, REACH, and Prop 65 certifications, ensuring seamless compliance for North American, European, and Asia-Pacific markets.
Our custom heater pumps power critical fluid loops across residential appliances, smart sanitary ware, commercial heating, automotive, and industrial HVAC chillers.

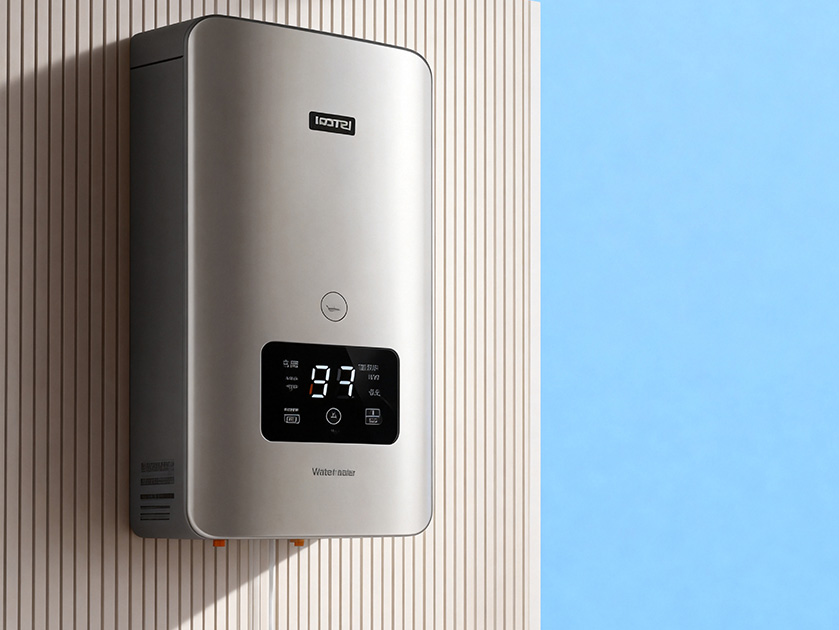

Delivers instant zero-wait hot water recirculation in modern gas and electric water heaters. High flow stability prevents scalding temperature spikes.
Ultra-quiet acoustic profile (<30 dB) ensures uninterrupted sleep. Low 12V voltage prevents electromagnetic fields (EMF) and electrical shock hazards.
Circulates warm glycol coolant to preheat battery packs in sub-zero winter climates, optimizing lithium-ion charging speed and extending vehicle battery range.

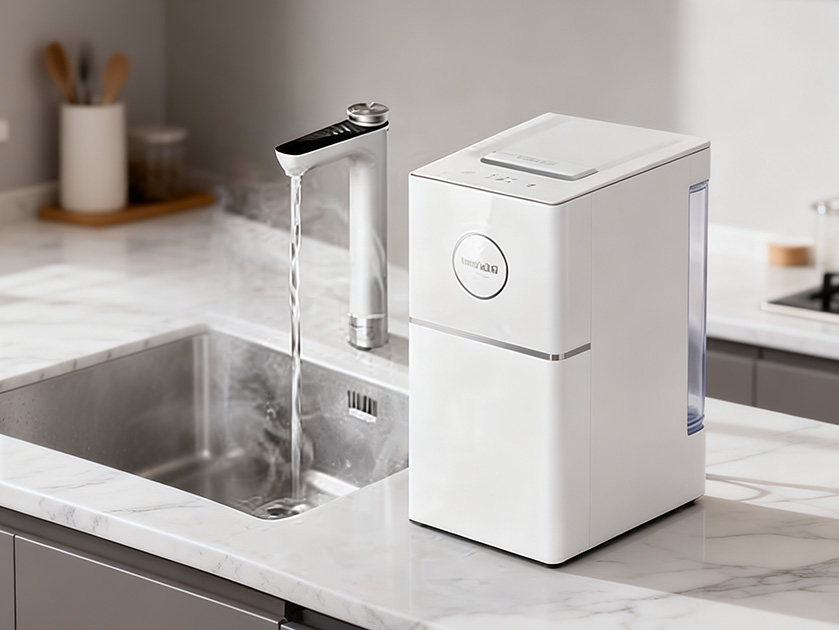

Food-grade materials (FDA/NSF compliant) ensure clean, contaminant-free hot water delivery for commercial dispenser units and smart home filtration.

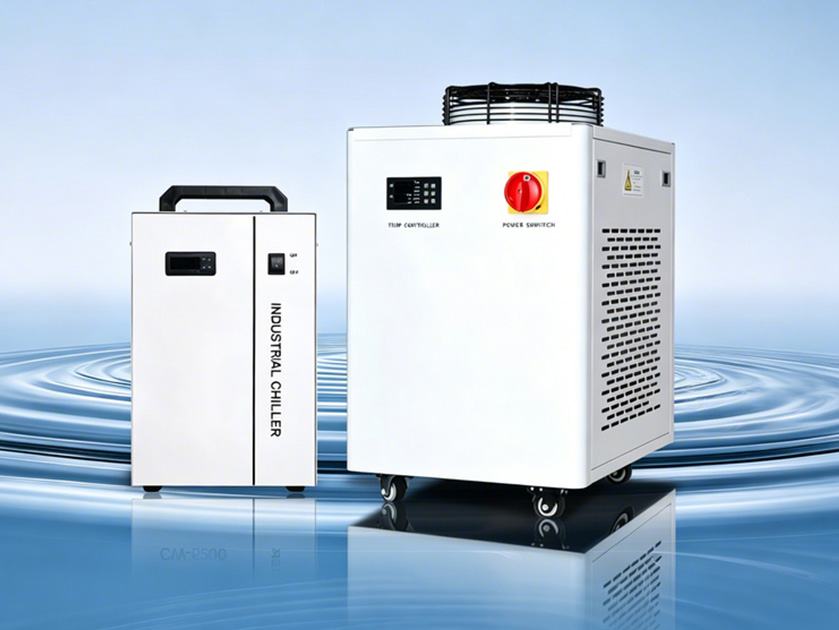

Rugged continuous duty cycle handling high pressure differential across laser equipment chillers, heat exchangers, and air-source heat pumps.
Micro-boost hydraulic pumps providing instant warm-water jet pressure for intelligent toilet bidet seats with instant heating modules.
What forward-thinking HVAC and home appliance engineering teams are demanding for 2026 and beyond.
Integration of LIN-bus, CAN-bus, and Modbus communication protocols directly into pump drivers. Allows host systems to monitor real-time motor temperature, current draw, shaft speed, and hydraulic blockage, enabling predictive maintenance before heating system failure occurs.
Through advanced 3D CFD fluid simulation and 9-pole stator skewing, next-generation pumps minimize hydraulic turbulence noise and motor cogging torque ripple, allowing silent operation inside residential living areas and master bedrooms.
Demand for compact appliances (such as instant under-sink heaters and slimline bidets) requires micro pumps with power densities exceeding 0.8W/cm³, delivering up to 10m head pressure in enclosures smaller than a standard coffee cup.
Key evaluation metrics for procurement directors, supply chain executives, and chief engineers when selecting custom heater pump manufacturers.
Sourcing custom BLDC pumps for heating applications involves strict engineering validation to avoid costly field recalls. Procurement teams should evaluate suppliers across five crucial performance vectors:
Verify whether the supplier conducts thermal cycling tests (alternating between 5°C and 95°C water within seconds) over 100,000 cycles to prove housing weld integrity and seal durability.
Ensure the factory offers custom nozzle sizes (barbed, threaded, quick-connect), bespoke mounting brackets, custom wiring harness pinouts, and custom firmware speed curves within 2-3 weeks.
Demand full component batch traceability down to the enamel magnet wire, PCB SMT lots, and ceramic shaft origins, backed by ISO9001 and IATF16949 audit reports.
RETO powers heating and fluid systems for over 600 clients across 100+ countries worldwide.
Expert answers to common engineering, customization, and procurement queries regarding heater circulation pumps.
Brushless DC (BLDC) pumps utilize electronic commutation and permanent magnet rotors, achieving energy conversion efficiencies between 65%-85% compared to 20%-30% for AC induction pumps. Additionally, BLDC pumps operate on safe low voltage (12V/24V DC), produce far less acoustic noise (<35 dB), allow digital PWM speed modulation, and feature magnetic drive isolation that prevents shaft leakage.
RETO employs automotive-grade Polyphenylene Sulfide (PPS) for pump housings, high-density Zirconia ceramic shafts, precision graphite bushings, and food-grade fluoroelastomer (FKM/EPDM) O-rings. Our magnetic drive architecture isolates the drive electronics from the hot fluid zone, preventing thermal breakdown of the PCB components.
We offer comprehensive OEM/ODM customization including: voltage ratings (6V, 12V, 24V, 48V DC), customized head and flow hydraulic curves, inlet/outlet nozzle port geometries (barbed, threaded, push-fit), rubber dampening bracket configurations, custom wiring harness/connector types (Molex, JST, AMP), and tailored control firmware (PWM, 0-10V, FG speed feedback signal).
Custom samples and engineering prototypes are typically delivered within 7 to 14 working days. For standard catalog models, MOQ starts at 500 units; for fully customized OEM designs, MOQ is typically 1,000 to 2,000 units depending on plastic tooling and mold requirements.
RETO's intelligent pump firmware monitors real-time motor current and back-EMF phase voltage. When air bubbles or zero-fluid conditions occur, the current draw drops precipitously. The micro-controller detects this pattern within seconds and initiates a low-power pulse mode or temporary shutdown to prevent ceramic bearing friction wear, automatically resuming normal speed once fluid presence is restored.
Discover our high-pressure, micro DC submersible, and energy-saving pump models for sanitary ware, water heating, and intelligent bidets.
Partner directly with Xiamen Reto Electric's senior R&D engineering team. We assist global OEM partners from initial hydraulic concept and 3D modeling to rapid prototyping, IATF16949 production validation, and volume delivery.
