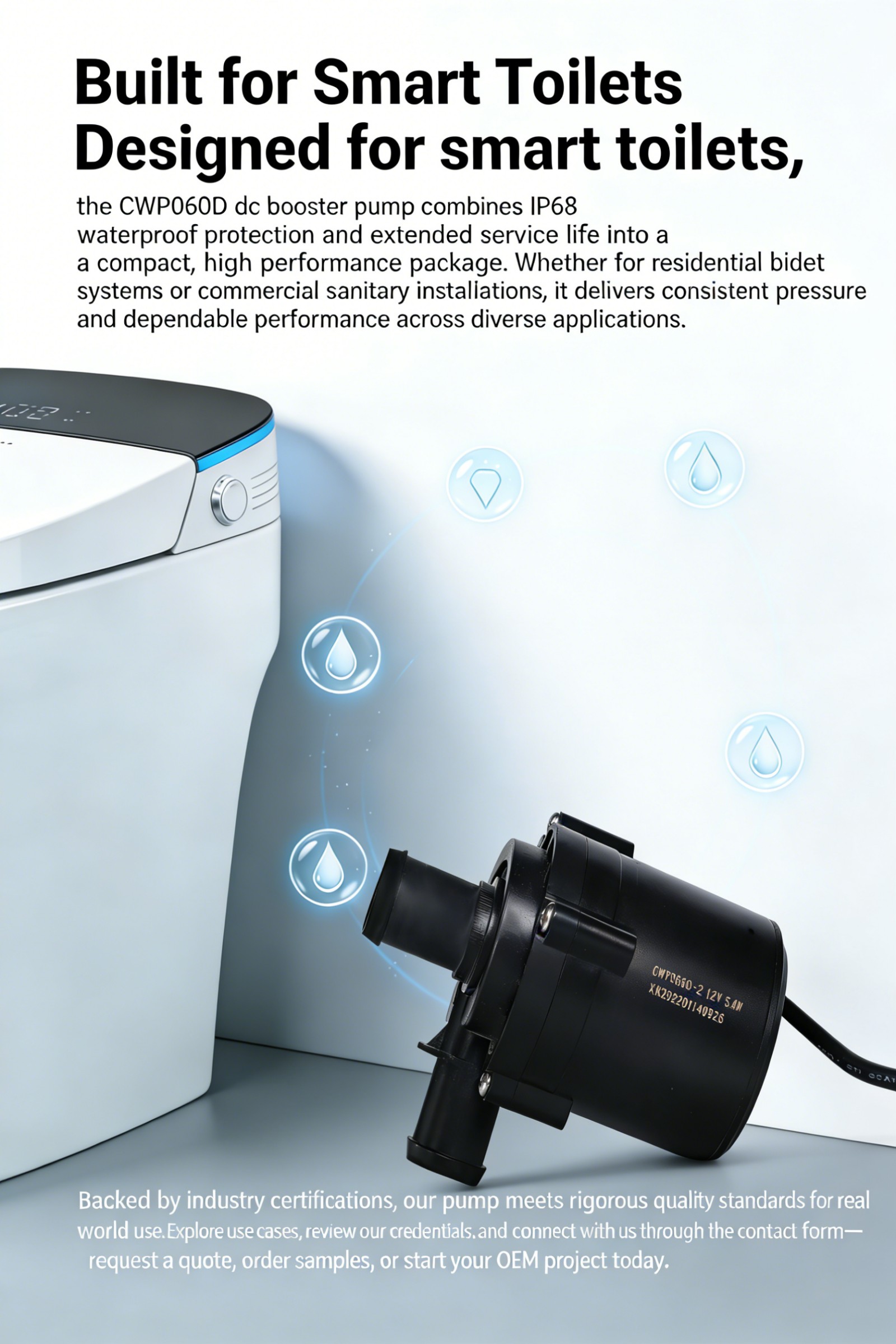

Designed for smart toilets, the CWP060D dc booster pump combines IP68 waterproof protection and extended service life into a compact, high-performance package.
Whether for residential bidet systems or commercial sanitary installations, it delivers consistent pressure and dependable performance across diverse applications.
Backed by industry certifications, our pump meets rigorous quality standards. Explore real-world use cases, review our credentials, and connect with us through the contact form—request a quote, order samples, or start your OEM project today.
It delivers stable and strong water pressure to ensure thorough, efficient flushing and consistent bidet spray performance. This greatly improves hygiene and daily usability, with every part optimized for reliable, low-fuss operation in long-term sanitary use.
The key feature of RETO brushless DC pump CWP040B are:

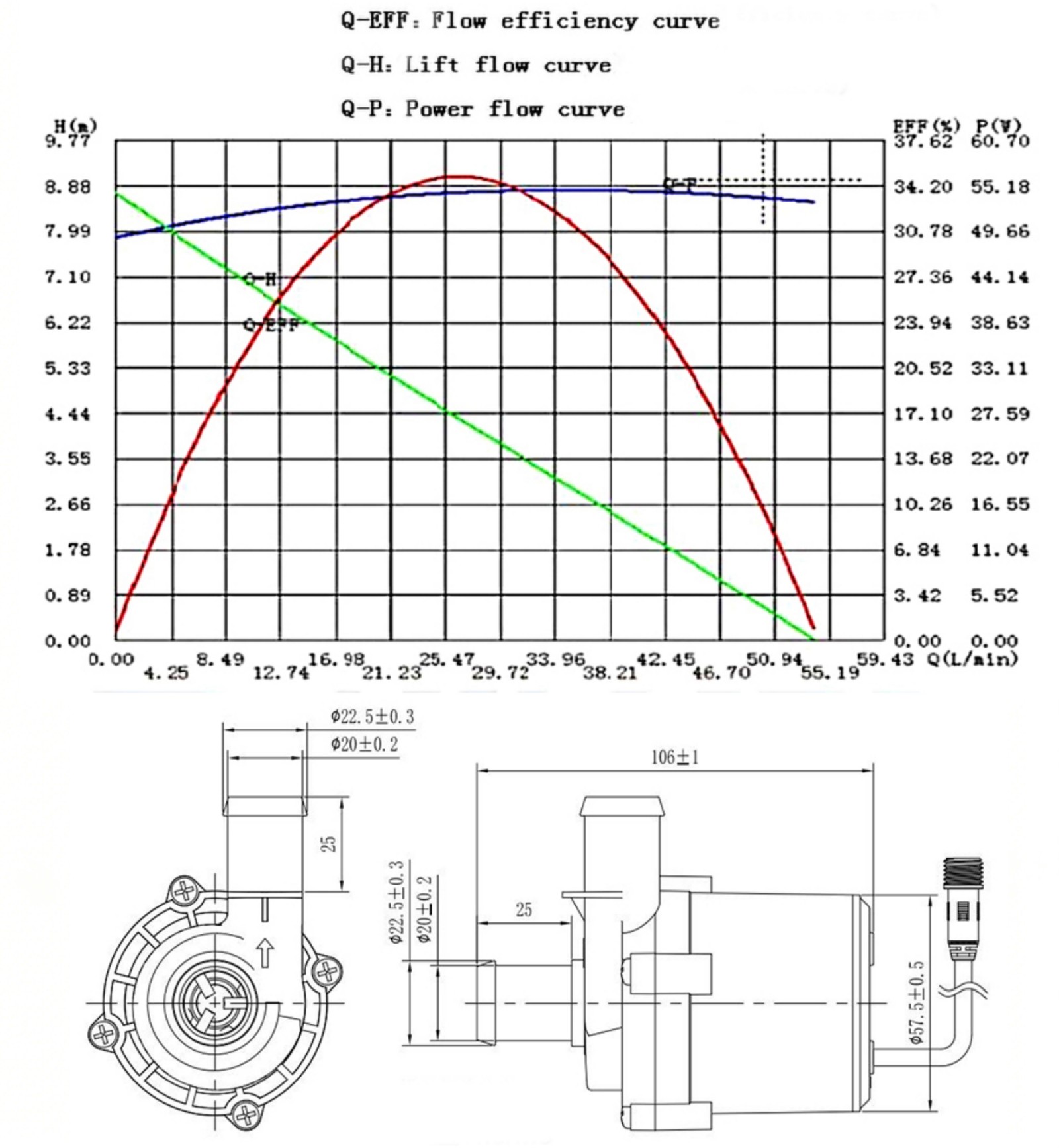

| MODEL：CWP060D | |||
|
AMBIENT TEMP | -25~55℃ | |
| HUMIDITY | SUBMERSIBLE | ||
| MEDIUM | PURE WATER/ANTIFREEZE | ||
| MEDIUM TEMP | 0~50℃ | ||
| WATERPROOF | IP68 | ||
| CONSTANT/CONTINUOUS PRESSURE | 1.5MPa/0.5MPa | ||
| SPECIFICATION | FEATURE | ||
| RATED VOLTAGE | 12V DC | COLOR | BLACK |
| RATED CURRENT | 4.2(1±10%)A | WEIGHT | 447g |
| RATED POWER | 50(1±10%)W | NOISE | ≦ 40dB@1m |
| MAX FLOW | 50(1±10%) L/min | LIFETIME | ≧200000TIMES （15SON，15SOFF） |
| MAX HEAD | 8±1 m | ||
| INSULATION | F（155℃） | ||

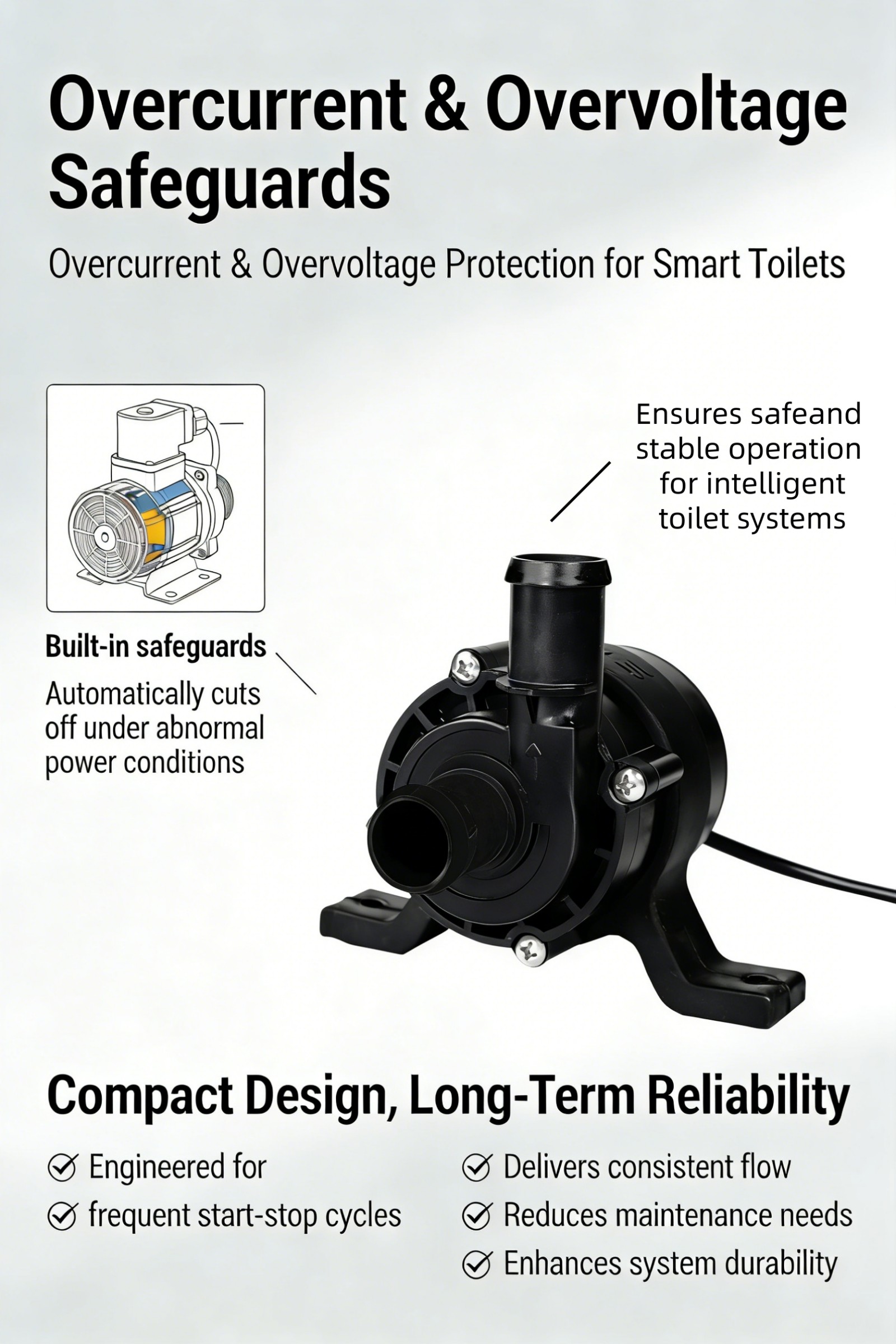

Built-in safeguards prevent electrical damage by automatically cutting off under abnormal power conditions, ensuring safe and stable operation for your intelligent toilet systems with this small dc water pump.
Engineered for frequent start-stop cycles, it delivers consistent flow while reducing maintenance needs. The protective features enhance system durability, making it a dependable choice for modern sanitary applications.
The CWP060D pump is specifically designed for smart toilets, residential bidet systems, and commercial sanitary installations to ensure strong, consistent flushing and bidet spray performance.
The pump features an IP68 waterproof rating, making it completely submersible and safe for long-term use in high-humidity sanitary environments.
It includes dry-running protection, over-current protection, over-voltage protection, lower-voltage protection, and over-temperature protection, along with a static seal design to prevent water leakage.
The CWP060D operates on a 12V DC rated voltage with 50W rated power. It delivers a maximum flow of 50 L/min and a maximum head height of 8m.
It supports pure water and antifreeze media with a medium temperature range of 0~50℃ and works under ambient operating temperatures between -25℃ and 55℃.
