China DC brushless water pump for smart toilet Supplier, Manufacturer

Name: BLDC Water Pump
Brand: RETO

The Small Water Booster Pump solves low pressure issues in high-rises/old systems. It actively boosts pressure for stable, powerful flushing & bidet functions, ensuring an ideal, worry-free toilet experience

Model No：CWP040F
RATED POWER:60W(±10%)
RATED VOLTAGE：12V DC

Send Inquiry

Product Description

Product Details

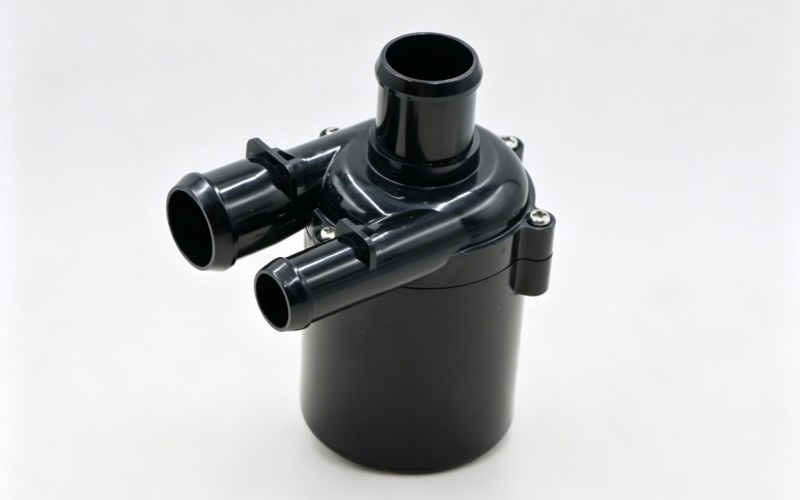

When it comes to whole-home water supply challenges, a Plumbing Booster Pump plays a critical role. By actively increasing water pressure at the point of use, it ensures that every flush is strong and every bidet function operates smoothly, regardless of how low the incoming supply pressure may be. This is especially valuable in high-rise apartments, older buildings, and regions with unreliable municipal water pressure.

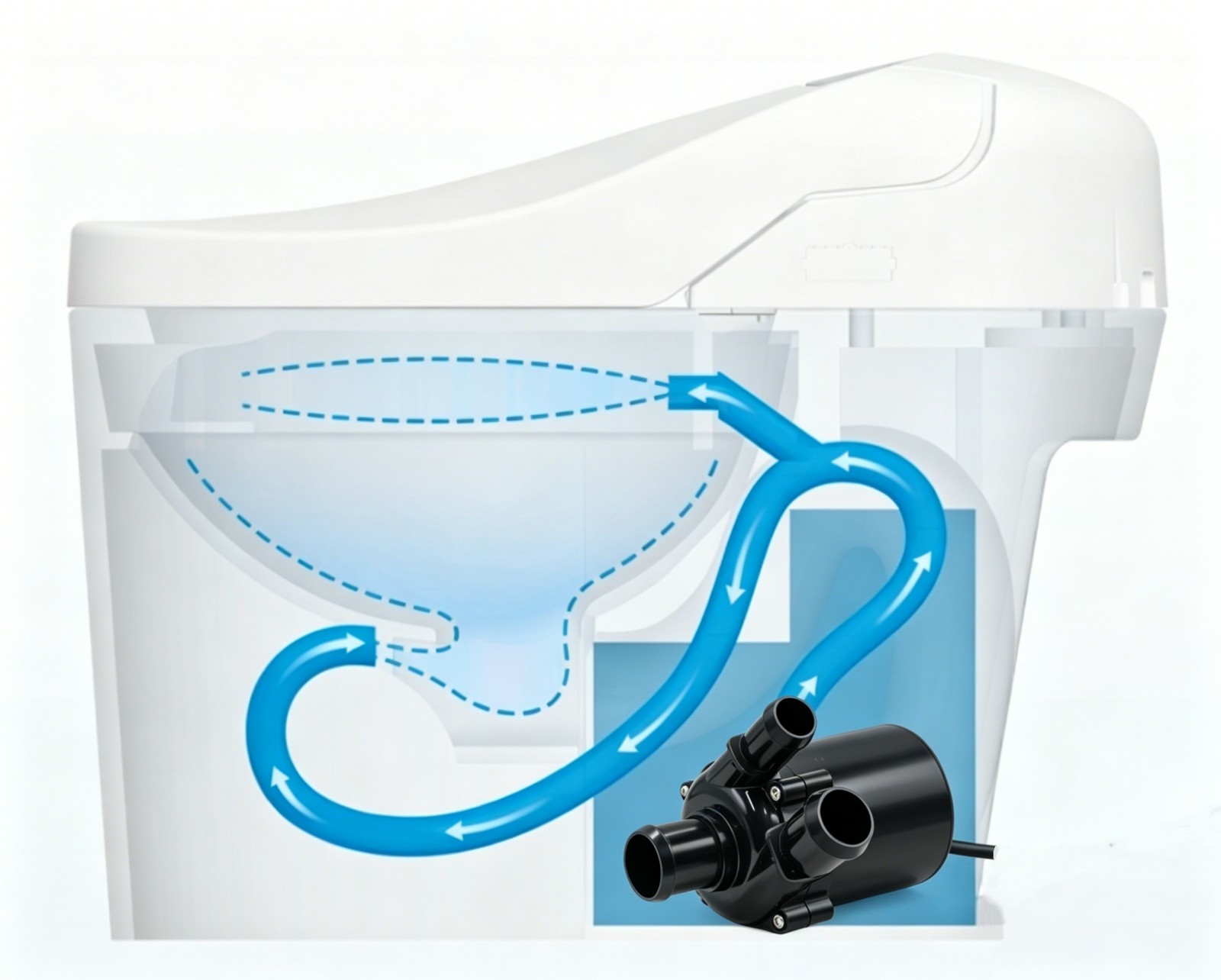

For smart toilet applications specifically, a Small Water Booster Pump offers the ideal balance of size, efficiency, and performance. It responds instantly to user commands, boosting pressure on demand for a powerful flush, then switching to a gentler flow for comfortable bidet washing. With brushless DC motor technology, it runs quietly, consumes minimal energy, and delivers long service life — making it a reliable upgrade for any smart toilet system.

Key Specifications

Take the CWP040F as an example. Powered by a 60W brushless DC motor at 12V, it delivers a peak flow of 59L/min and a maximum head of 5.8m in standard rotation — more than enough to turn a sluggish flush into a strong, thorough clean. Its unique forward-reverse rotation design enables dual-mode operation: forward rotation generates high pressure for flushing, while reverse rotation provides a soft, controlled flow ideal for bidet washing. This means one compact pump can handle both functions without the need for additional components.

MODEL: CWP040F
		AMBIENT TEMP	-25~55℃
		HUMIDITY	Below 90% RH
		MEDIUM	PURE WATER/ANTIFREEZE
		MEDIUM TEMP	0~45℃
		WATERPROOF	IP68
		CONSTANT/CONTINUOUS PRESSURE	1.5MPa/0.5MPa
SPECIFICATION		FEATURE
RATED VOLTAGE	12V DC	COLOR	BLACK
RATED CURRENT	5(1±10%)A	WEIGHT	286g
RATED POWER	60(1±10%)W	NOISE	≦ 40dB@1m
MAX FLOW	Standard Rotation: Down thrust: 59 (1±15%) L/min \| Up thrust: 30 (1±15%) L/min Reverse Rotation: Downward flow: 6.5 (1±15%) L/min \| Upward flow: 30 (1±15%) L/min	LIFETIME	≧200,000 TIMES
MAX HEAD	Standard Rotation: Down thrust: 5.8 m, Up thrust: 4.5 m Reverse Rotation: Down thrust: 1.5 m, Up thrust: 4 m	INSULATION	F（155℃）

Reliability & Durability

Reliability is just as important as performance. The pump features overheat protection and dry-run protection to prevent damage during extended use, while its IP68 waterproof rating ensures safe operation in the humid environment inside a smart toilet. With a rated lifetime of over 200,000 cycles and noise kept below 40dB, it delivers quiet, dependable service day after day.

Whether you are a smart toilet manufacturer looking for a reliable OEM component or a system integrator solving real-world pressure problems, this pump provides a proven, plug-and-play solution — strong flushing, gentle washing, and worry-free performance in one compact unit.

12V DC Small Water Booster Pump For Smart Toilet

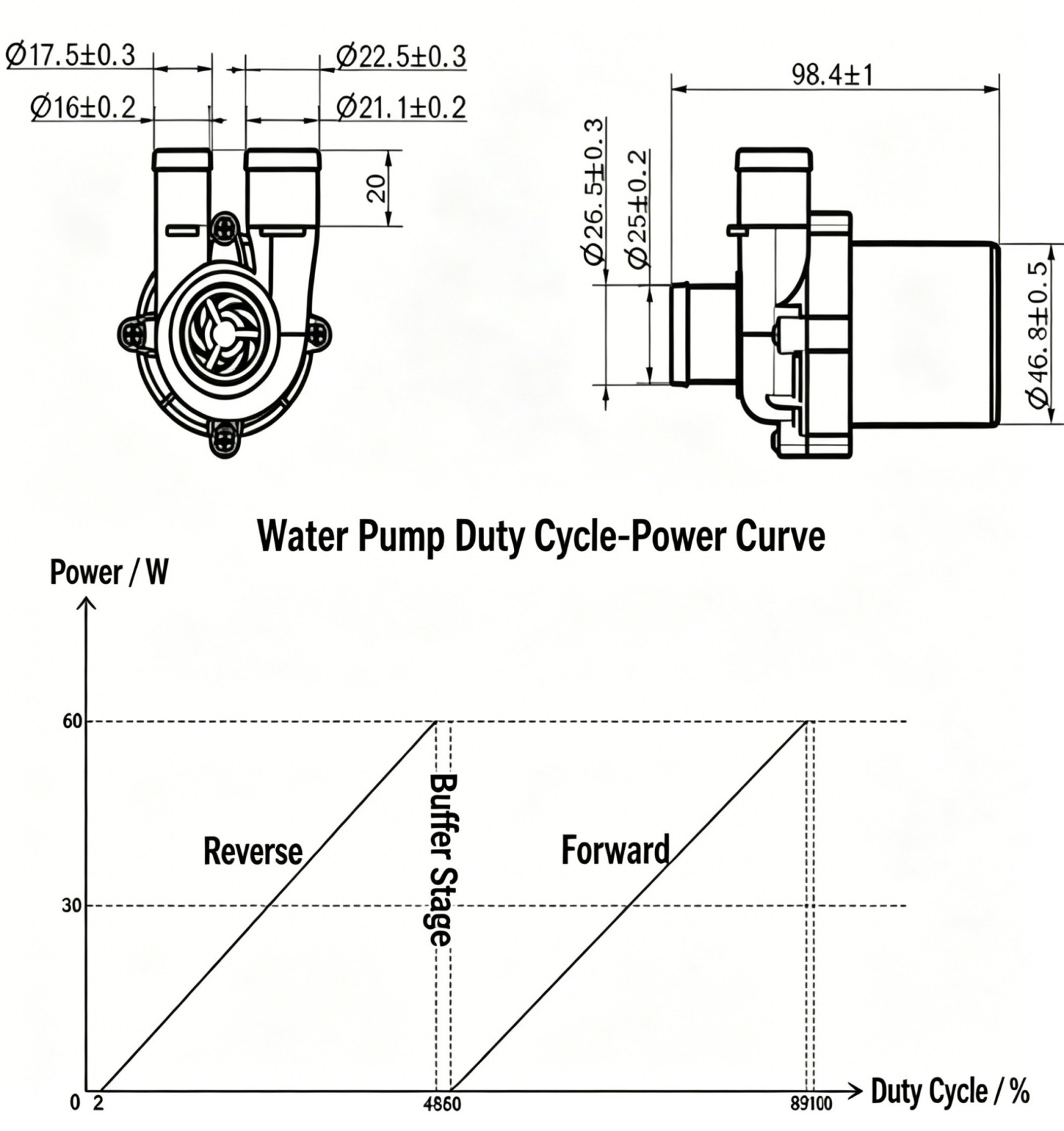

Reliable & durability Inline Pressure Pump

Reliable & durability Mini DC Water Pump

Frequently Asked Questions

Q1: Is this pump self-priming?

A: No. The CWP040F is an inline booster pump — it should be installed where water gravity-feeds into the inlet, typically connected directly to the water supply line.

Q2: Can it run continuously?

A: It activates on demand via intelligent start-stop, not designed for 24/7 continuous operation. With a rated lifetime of 200,000+ cycles, it handles years of frequent daily use reliably.

Q3: What toilet brands is it compatible with?

A: It's a universal OEM component, not brand-specific. It fits most smart toilets that can accommodate a compact 12V DC pump. Custom OEM configurations are also available.

Q4: What is the installation process like?

A: Plug-and-play. At only 286g, it fits inside most smart toilet housings. Connect to the water line via standard fittings and plug the 12V DC cable into the toilet's control board — no special tools needed.

Q5: Will it work with both flushing and bidet functions?

A: Yes. Its forward-reverse dual-mode rotation enables high pressure for flushing in forward mode and a soft, controlled flow for bidet washing in reverse mode.

Q6: What built-in protections does the pump offer?

A: The pump comes equipped with overheat protection and dry-run protection to prevent damage, combined with an IP68 waterproof rating for long-term safety in humid environments.
