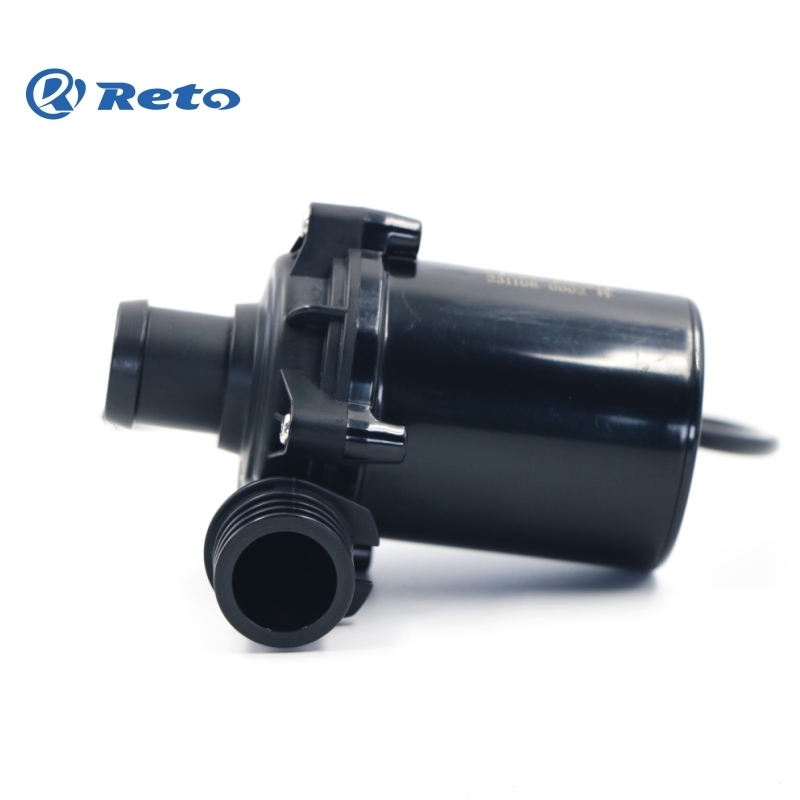

Engineered for the frequent start-stop cycles typical of smart toilets, the small water pump to remove water withstands a maximum pressure of 1.5MPa, complemented by Class F insulation—ensuring electrical safety and structural stability throughout years of operation.
Weighing just 276g, our cold mains booster pump balances low power consumption with high flow output, making it easy to integrate into compact toilet housings while freeing up valuable interior space for other design elements.
It delivers stable and sufficient water pressure to support powerful, efficient flushing, thoroughly cleaning the toilet bowl and removing residues effectively. Its consistent performance ensures reliable flushing cycles while maintaining quiet operation for a more comfortable user experience.

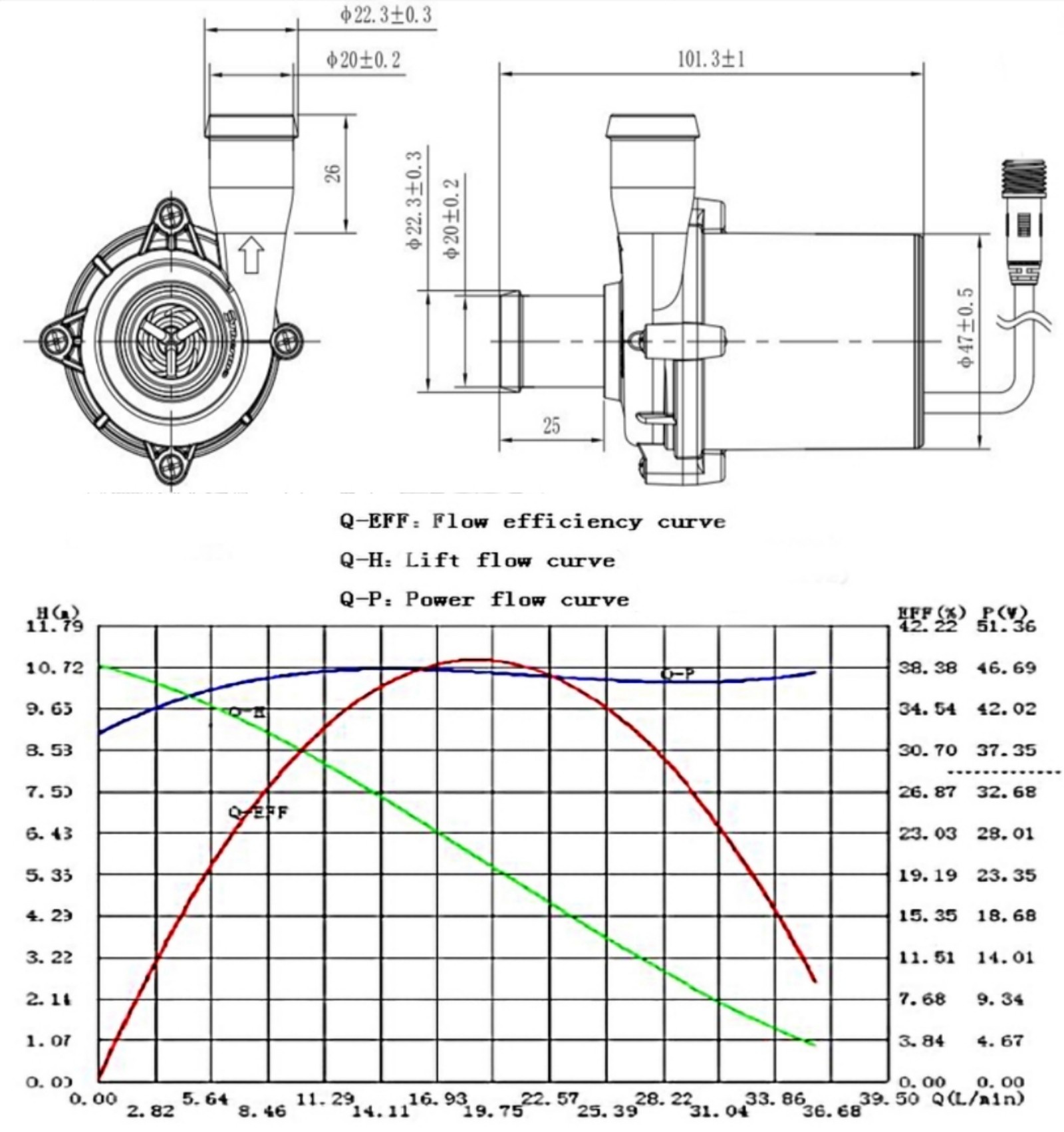

| MODEL: CWP040 | |||
|
AMBIENT TEMP | -25~55℃ | |
| HUMIDITY | SUBMERSIBLE | ||
| MEDIUM | PURE WATER/ANTIFREEZE | ||
| MEDIUM TEMP | 0~50℃ | ||
| WATERPROOF | IP68 | ||
| CONSTANT/CONTINUOUS PRESSURE | 1.5MPa/0.5MPa | ||
| SPECIFICATION | FEATURE | ||
| RATED VOLTAGE | 24V DC | COLOR | BLACK |
| RATED CURRENT | 1.96(1±10%)A | WEIGHT | 276 g |
| RATED POWER | 47(1±10%)W | NOISE | ≦ 40dB@1m |
| MAX FLOW | 37(1±10%) L/min | LIFETIME | ≧200000TIMES（15SON, 15SOFF） |
| MAX HEAD | 10±1 m | INSULATION | F（155℃） |
All pump types have undergone rigorous durability testing and feature built-in electrical protections for long-term safety and stability. We also offer flexible customization options—including flow parameters, port configurations, and ingress protection ratings—to meet the unique requirements of different brands and integrated system designs.
From inline installation compactness to reliable drainage and cold water pressure boosting, our 12V small water pump series delivers precisely matched power for a wide range of smart toilet applications.
Custom OEM solutions available. Contact RETO today.
The pump withstands a maximum pressure of 1.5MPa, with a continuous pressure rating of 0.5MPa.
Yes, it features a fully submersible waterproof build rated at IP68, ensuring long-lasting and safe bathroom operation.
The pump operates on 24V DC rated voltage, with a rated power of 47W (1±10%) and a rated current of 1.96A (1±10%).
It delivers low-noise operation rated at ≦ 40dB at a 1-meter distance, maintaining a comfortable user experience.
Yes, flexible customization options are available—including flow parameters, port configurations, and ingress protection ratings to meet OEM system requirements.
It has a tested lifetime of ≧ 200,000 cycles (15s ON, 15s OFF) and is built with Class F insulation (155℃).
