Name: BLDC Water Pump
Brand: RETO

Boost Your Smart Toilet with Mini DC Pump. Compact, whisper-quiet, durable—solving weak flow, noise, maintenance. Ideal for high-pressure bidets, flushing, circulation. Contact for precision fluid solutions.

Model No.: CWP040B

RATED POWER: 47(1±10%)W

MAX FLOW:37±1 L/min

MAX HEAD:10±1 m

Send Inquiry

Product Description

Tired of inconsistent flushing, noisy operation, or hard-to-fit pumps for your smart toilet designs?

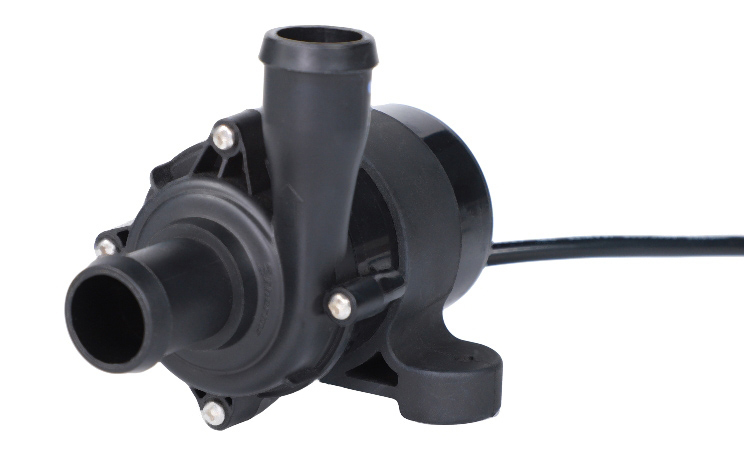

RETO CWP040B 12V Brushless DC Pump – a precision miniature pump and small high pressure water pump for smart toilets. Solves low water pressure, noise, and maintenance issues. Compact, quiet, and reliable. Elevate your smart toilet today.

Product Introduction

12V DC Brushless Smart Toilet Water Pump

Experience powerful flushing and instant warm bidet flow even under ultra-low 0.5MPa inlet pressure. Our compact brushless pump delivers 37L/min flow and 10m head, eliminating weak flushing issues completely.

IP68 Waterproof

Ultra-Quiet ≤40dB

200k+ Long Lifespan

47W Energy-Saving

Key Specifications

Max Flow

37 L/min

Max Head

10 M

Power & Voltage

47W / 12V DC

Max Flow	37 L/min
Max Head	10 M
Rated Power	47 W
Voltage	12V DC

Enjoy whisper-quiet operation and reliable performance for powerful flushing and stable hot water circulation. Fully customizable for OEM requirements.
Your Partner in Smart Toilet Fluid Solutions

Features

Customized Protections & Control Functions for Smart Toilet DC Brushless Pumps:

1. Dry-running Protection

2. Over Current Protection

3. Blocked Protection

4. Over Voltage Protection

5. Under Voltage Protection

6. Reverse Protection

7. Constant Power

8. Over Temperature Protection

9. PWM Control

MODEL: CWP040B
		AMBIENT TEMP	-25~55℃
		HUMIDITY	SUBMERSIBLE
		MEDIUM	PURE WATER/ANTIFREEZE
		MEDIUM TEMP	0~50℃
		WATERPROOF	IP68
		CONSTANT/CONTINUOUS PRESSURE	1.5MPa / 0.5MPa
SPECIFICATION		FEATURE
RATED VOLTAGE	24V DC	COLOR	BLACK
RATED CURRENT	1.96(1±10%)A	WEIGHT	276 g
RATED POWER	47(1±10%)W	NOISE	≦ 40dB@1m
MAX FLOW	37(1±10%) L/min	LIFETIME	≧200,000 TIMES（15S ON, 15S OFF）
MAX HEAD	10±1 m	INSULATION	F（155℃）

Our Advantages

Smart Toilet Fluid Solution – RETO Micro Brushless Pump

Eliminate Night Flushing Noise

No more disruptive sounds. RETO pump ensures whisper-quiet operation, disturbance-free for your family.

≤40dB Ultra-Quiet

Library-level silence. Precision-engineered for peaceful flushing and bidet without compromising power.

≥200,000 Cycles Lifespan

Durable ceramic shaft & copper windings. Reliable performance, reduces maintenance and replacement.

100% Pre-shipment Inspection

Every unit tested for performance, pressure, leakage. IATF16949 certified, zero defects guaranteed.

Frequently Asked Questions

Can this pump be used for water temperatures above 50°C?

Yes, it supports continuous operation with water temperatures up to 0~50°C.

What is the minimum order quantity for customized parameters?

MOQ for standard products is 100 units.

What is the delivery time for bulk orders?

Standard orders are delivered within 5-9 days from Xiamen factory, and customized orders are delivered within 15-25 days. We support sea, air, and express shipping options.

What is the lifespan and durability of the RETO CWP040B pump?

The pump is built with a durable ceramic shaft & copper windings, achieving a lifespan of ≥200,000 cycles (15s ON, 15s OFF), significantly reducing maintenance requirements.

What is the noise level of this pump during operation?

It features library-level ultra-quiet operation at ≦40dB@1m, ensuring disturbance-free night flushing for your family.

Is the pump waterproof and safe for smart toilet integration?

Yes, it comes with an IP68 waterproof rating, supports submersible environments, and incorporates multiple safety protections including dry-running, over-voltage, and over-current protection.
