How to choose the right water pump for a smart toilet? Prioritise models that combine pressure boosting, thorough flushing, and a circulation loop for bidet cleaning. Effective lifting of waste also prevents odours and blockages—key for daily household use.
When inlet pressure fluctuates, a Low Pressure Booster Pump autostarts to sustain flush force. It recirculates water for nozzle rinsing, so every flush stays complete and hygiene is maintained, no matter the floor level.
|
AMBIENT TEMP | -25~55℃ | |
| HUMIDITY | SUBMERSIBLE | ||
| MEDIUM | PURE WATER/ANTIFREEZE | ||
| MEDIUM TEMP | 0~50℃ | ||
| WATERPROOF | IP68 | ||
| CONSTANT/CONTINUOUS PRESSURE | 0.8MPa/0.5MPa | ||
| SPECIFICATION | FEATURE | ||
| RATED VOLTAGE | 12 V DC | COLOR | BLACK |
| RATED CURRENT | 5(1±10%)A | WEIGHT | 453 g |
| RATED POWER | 60(1±10%)W | NOISE | ≦ 45dB@1m |
| MAX FLOW | 95(1±10%) L/min | LIFETIME | ≧20 0000 TIMES（15SON） |
| MAX HEAD | 5±1 m | INSULATION | F（155℃） |

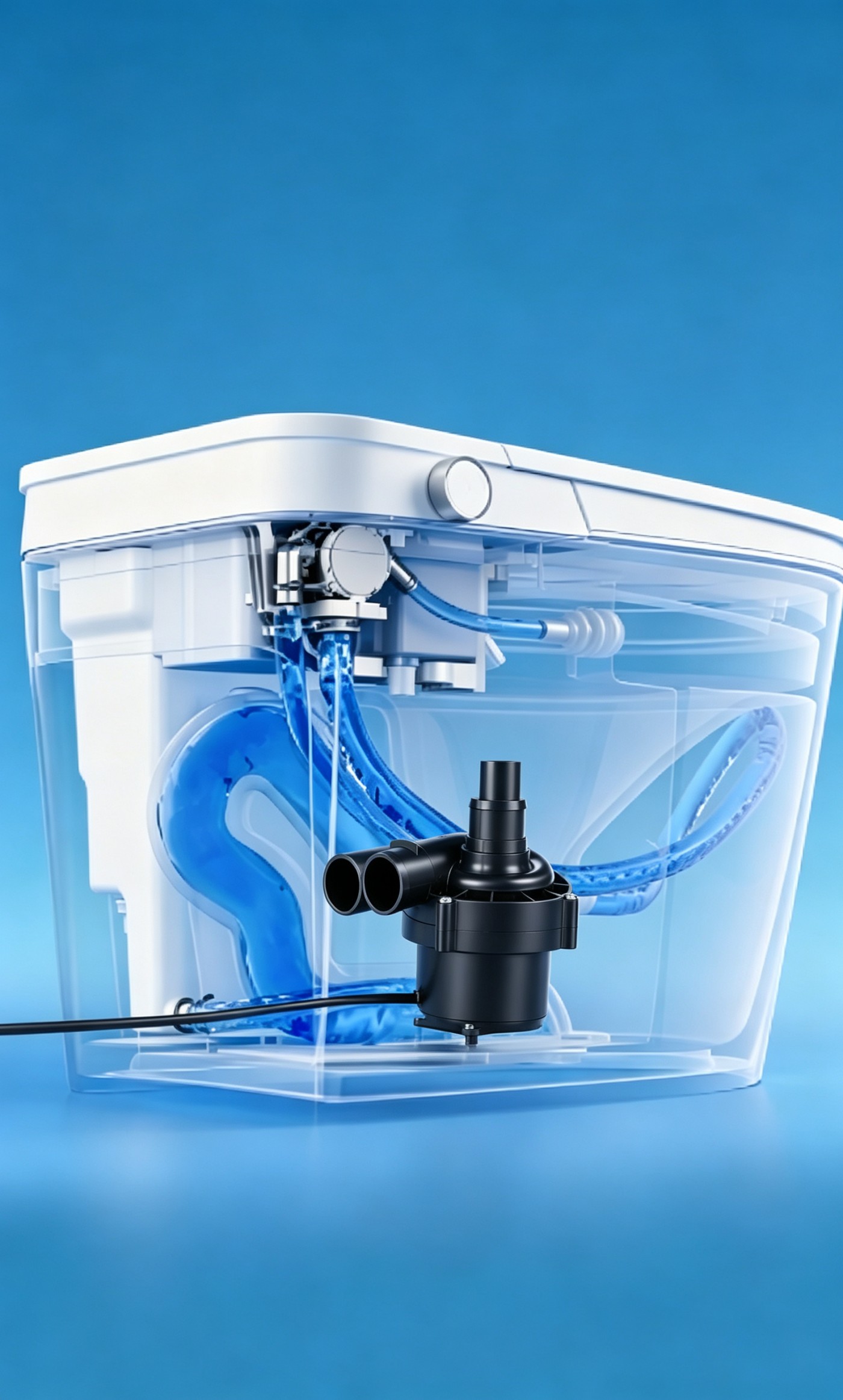

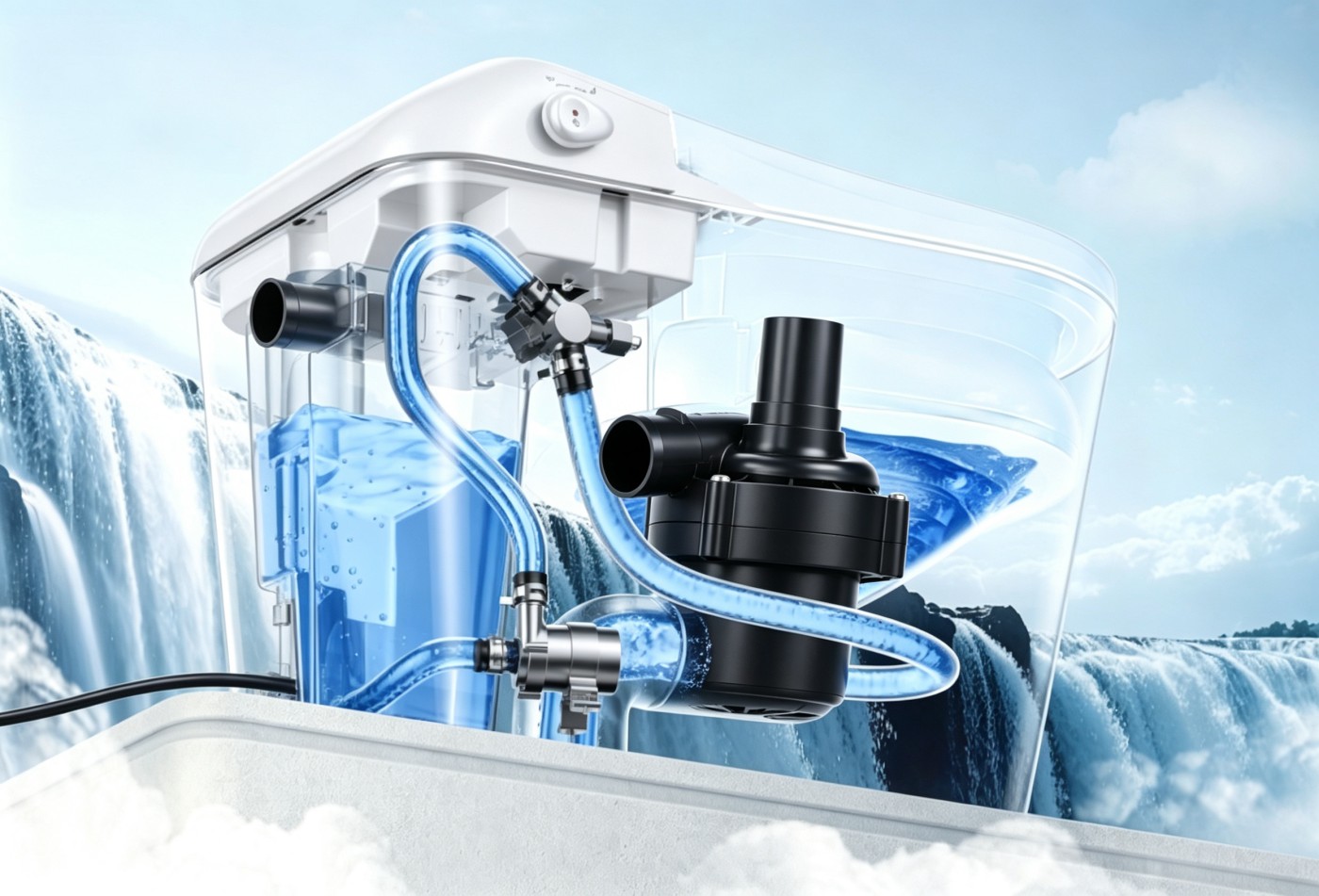

The CWP080A serves as a pressure booster and recirculation pump. It delivers consistent water pressure for powerful flushing and supports water circulation for bidet nozzle cleaning, ensuring high hygiene standards even in low-pressure conditions.
Yes, the pump features an IP68 waterproof rating and is fully submersible, making it suitable for wet environments and submerged operation within water reservoirs or plumbing assemblies.
The pump operates quietly with a noise level of ≦ 45dB at a distance of 1 meter, ensuring comfortable and non-disruptive household use.
The pump is compatible with pure water and antifreeze solutions, handling fluid temperatures ranging from 0°C to 50°C (32°F to 122°F).
Yes, thanks to its compact size and high flow rate (up to 95 L/min), it is widely applied in dishwashers, medical equipment, beauty devices, LED cooling systems, semiconductor cooling, and wastewater lifting systems.
The CWP080A runs on a rated 12V DC power supply with a rated current of 5A and power output of 60W, delivering efficient performance for compact low-voltage systems.
