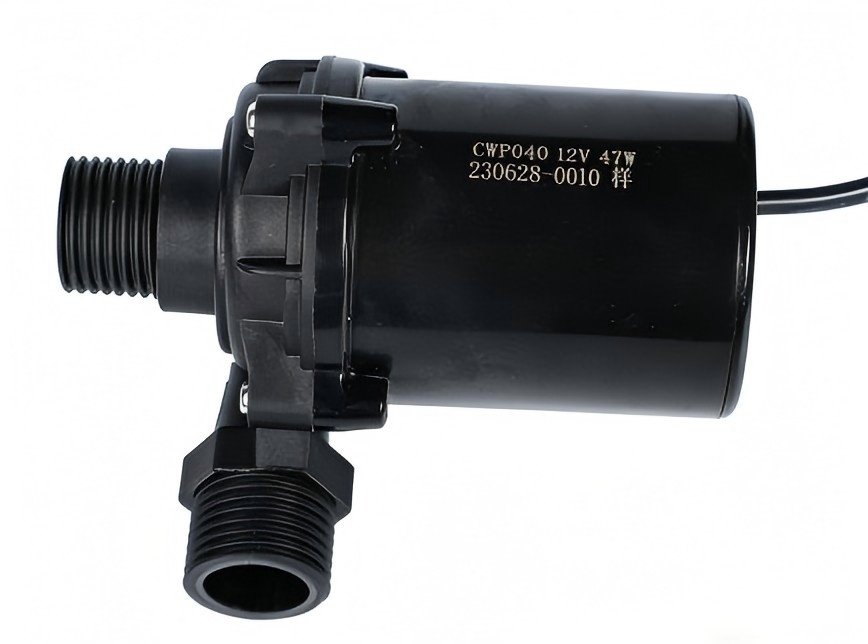

Custom 12V Smart Toilet High Pressure DC Water Pump Supplier, Suppliers

Name: BLDC Water Pump
Brand: RETO

Upgrade your smart toilet with our inline water pressure pump, engineered to eliminate weak flushing and disruptive noise. This compact booster delivers consistent, Durability–, ultra-quiet ≤40dB, rated for 20,000+ cycles.

Model No.: CWP040C
RATED POWER: 50 (1±10%)W
MAX FLOW:38(1±10%) L/min
MAX HEAD:12.5±1 m

Send Inquiry

Product Description

Technical Parameters

1. Core Performance 12V DC, 50W brushless motor for efficient operation.

2. Flow & Head Max 38 L/min flow with 12.5m head, ensuring powerful flushing.

3. Technical Specs Summary Complete parameters for smart toilet applications.

Designed for smart toilets, this small centrifugal water pump prioritizes energy efficiency. Reduced power consumption lowers operating costs while maintaining reliable flushing performance—an eco-conscious choice for modern sanitary systems.

MODEL: CWP040C
		AMBIENT TEMP	-25~55℃
		HUMIDITY	SUBMERSIBLE
		MEDIUM	PURE WATER/ANTIFREEZE
		MEDIUM TEMP	0~50℃
		WATERPROOF	IP68
		CONSTANT/CONTINUOUS PRESSURE	1.5MPa/0.5MPa
SPECIFICATION		FEATURE
RATED VOLTAGE	12V DC	COLOR	BLACK
RATED CURRENT	4.17(1±10%)A	WEIGHT	270g
RATED POWER	50 (1±10%)W	NOISE	≦ 40dB@1m
MAX FLOW	38(1±10%) L/min	LIFETIME	≧200,000 TIMES
MAX HEAD	12.5±1 m	INSULATION	F（155℃）

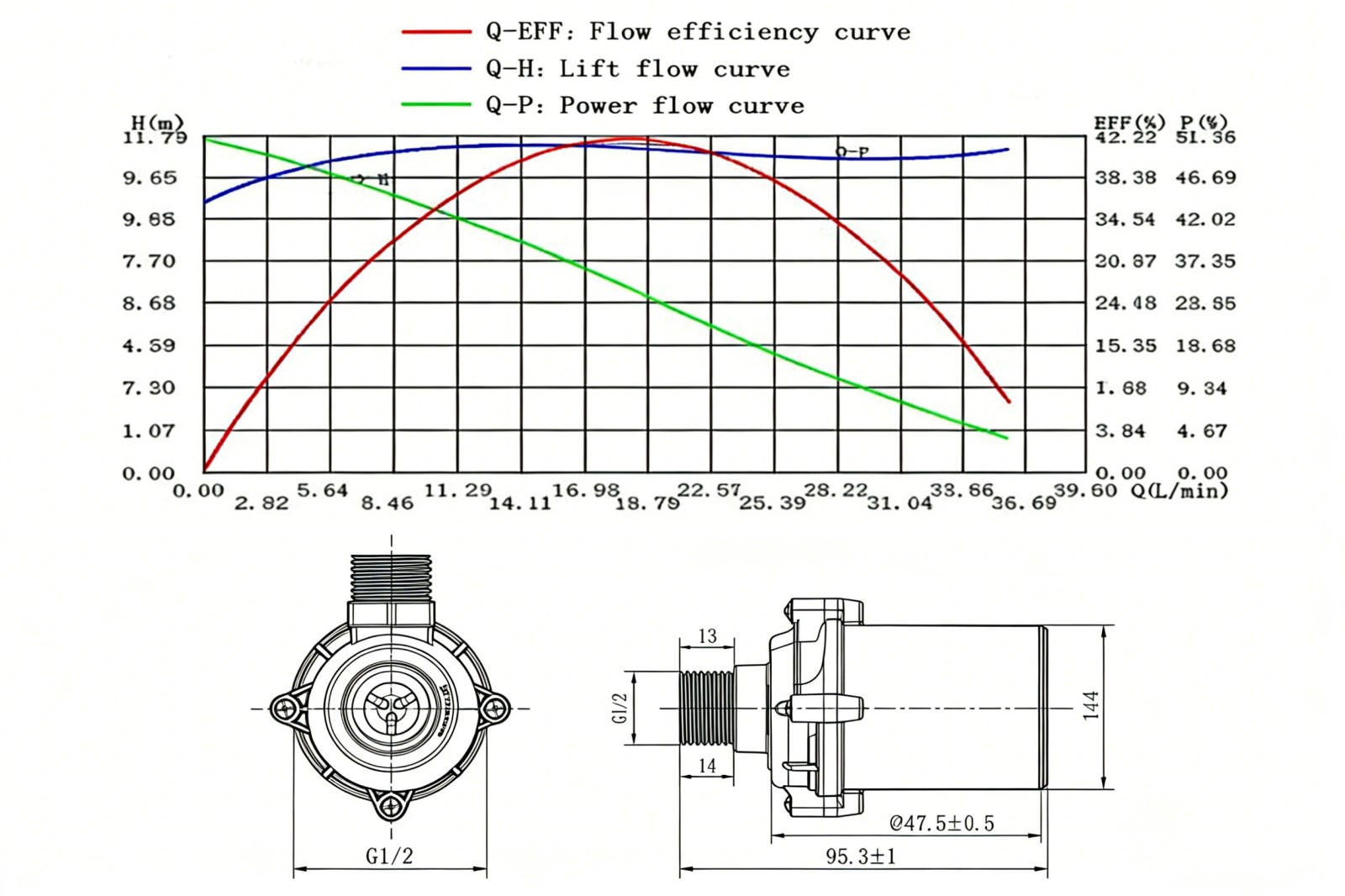

12V Smart Toilet High Pressure DC Water Pump (5)

Advantage Module

IP68-rated fully submersible design ensures complete protection against water intrusion. IP68 waterproof, Engineered to perform reliably in high moisture bathroom settings—making it a dependable choice beyond smart toilets, including as a shower pressure booster pump in wet environments.

Small in size but big on performance, delivering strong, consistent pressure to ensure robust flushing even with low inlet water supply. The high-efficiency brushless motor maximizes output while minimizing energy consumption.

Advanced motor technology and premium internal components significantly reduce replacement frequency and maintenance costs. Designed to withstand demanding conditions for long-term reliability.

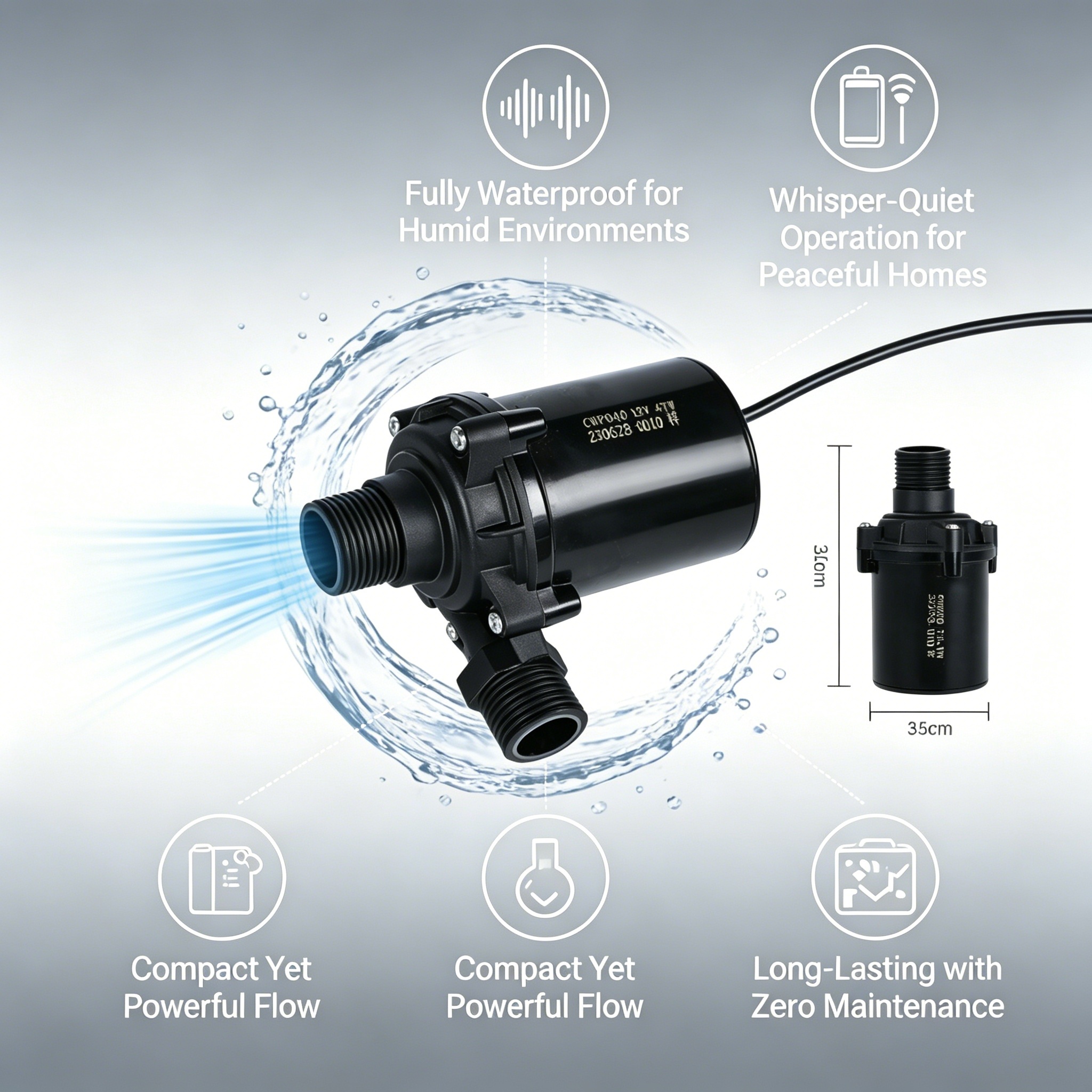

12V Smart Toilet High Pressure DC Water Pump (1)

12V Smart Toilet High Pressure DC Water Pump (2)

Application Scenarios

Optimized as a smart toilet booster pump, the CWP040C delivers powerful flushing performance. It also functions as a dependable water circulation pump for applications requiring steady pressure and compact installation. energy efficiency, and versatile adaptability make it a reliable solution across residential and commercial systems. Custom OEM options available. Contact RETO today.

Customized to fit. Get in touch with RETO.

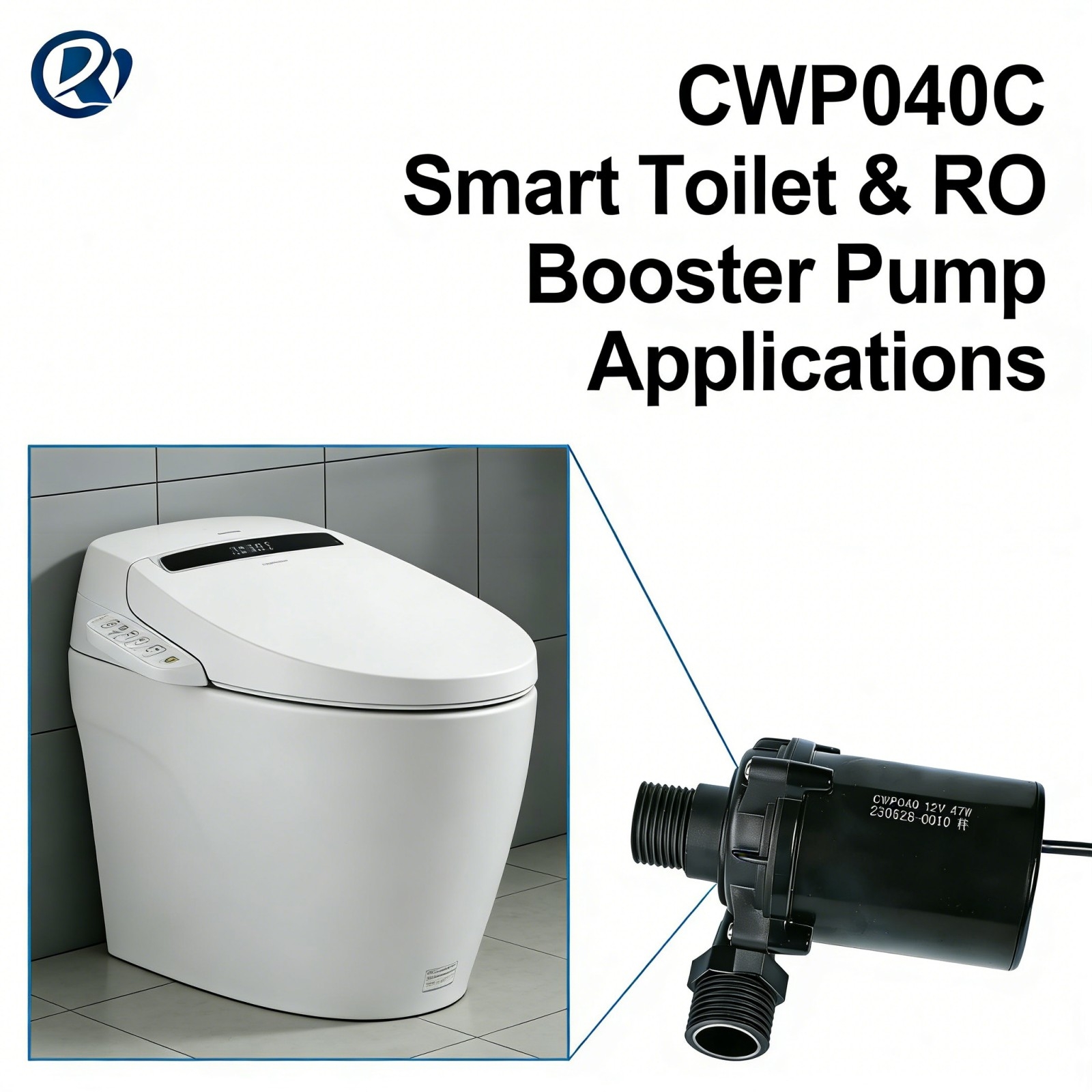

12V Smart Toilet High Pressure DC Water Pump (3)

Frequently Asked Questions

What are the main applications of the CWP040C pump?

It is primarily optimized as a smart toilet booster pump. It also serves as a dependable water circulation pump and a shower pressure booster pump for wet bathroom environments.

What are the power and flow performance specifications?

The pump operates on a 12V DC rated voltage with a 50W brushless motor. It delivers a max flow rate of 38 L/min and a maximum head of 12.5m.

Is this pump fully waterproof for submerged use?

Yes, the pump features an IP68-rated fully submersible design, providing total protection against water intrusion in high moisture settings.

What is the expected operational lifetime and noise level?

The pump has a low operational noise level of ≦ 40dB at 1 meter and a long lifespan rated at ≧ 200,000 times.

Are custom OEM solutions available for this pump?

Yes, custom OEM options are available to fit specific system configurations. You can contact RETO directly for customized solutions.
