China Pressure Pump for Smart Toilet Flushing Manufacturers, Factory

1 / 4

China Pressure Pump for Smart Toilet Flushing Manufacturers, Factory

Name: BLDC Water Pump
Brand: RETO

For modern smart toilets, ensuring consistent water pressure is crucial for a comfortable user experience. A reliable Home Water Pressure Booster Pump helps solve low-pressure issues effectively, supporting powerful flushing performance even in high-rise buildings or areas with unstable water supply.

Model No:CWP060D

RATED POWER: 50(1±10%)W

MAX FLOW: 50(1±10%) L/min

MAX HEAD:8±1 m

Send Inquiry

Product Description

Product Details

Problems It Solves

Low or unstable inlet water pressure in smart toilets
Weak flushing in high-rise buildings
Inconsistent water supply affecting hygiene performance
Limited installation space inside toilet housing
Need for quiet, reliable, and long-lasting pump operation

Core Functions

Acts as a Pressure Increasing Pump to help overcome pipe resistance and deliver stronger flushing
Integrates seamlessly into the toilet's internal structure without occupying extra space
Supports water circulation and assists in wastewater lifting
Compact design suitable for tight installation environments
Engineered for continuous, waterproof operation

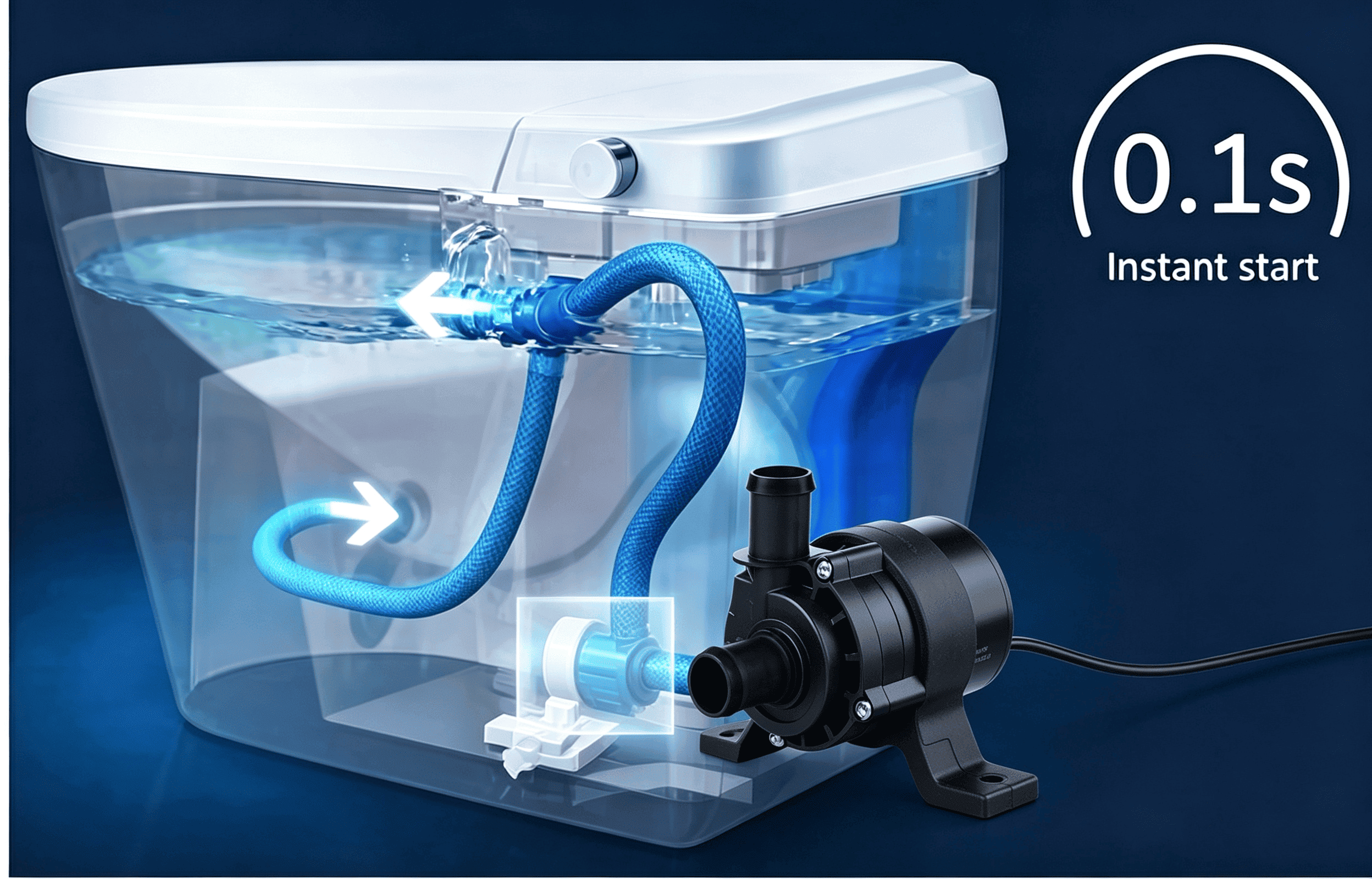

Product Details Mini Water Pump Usb 2 (1)

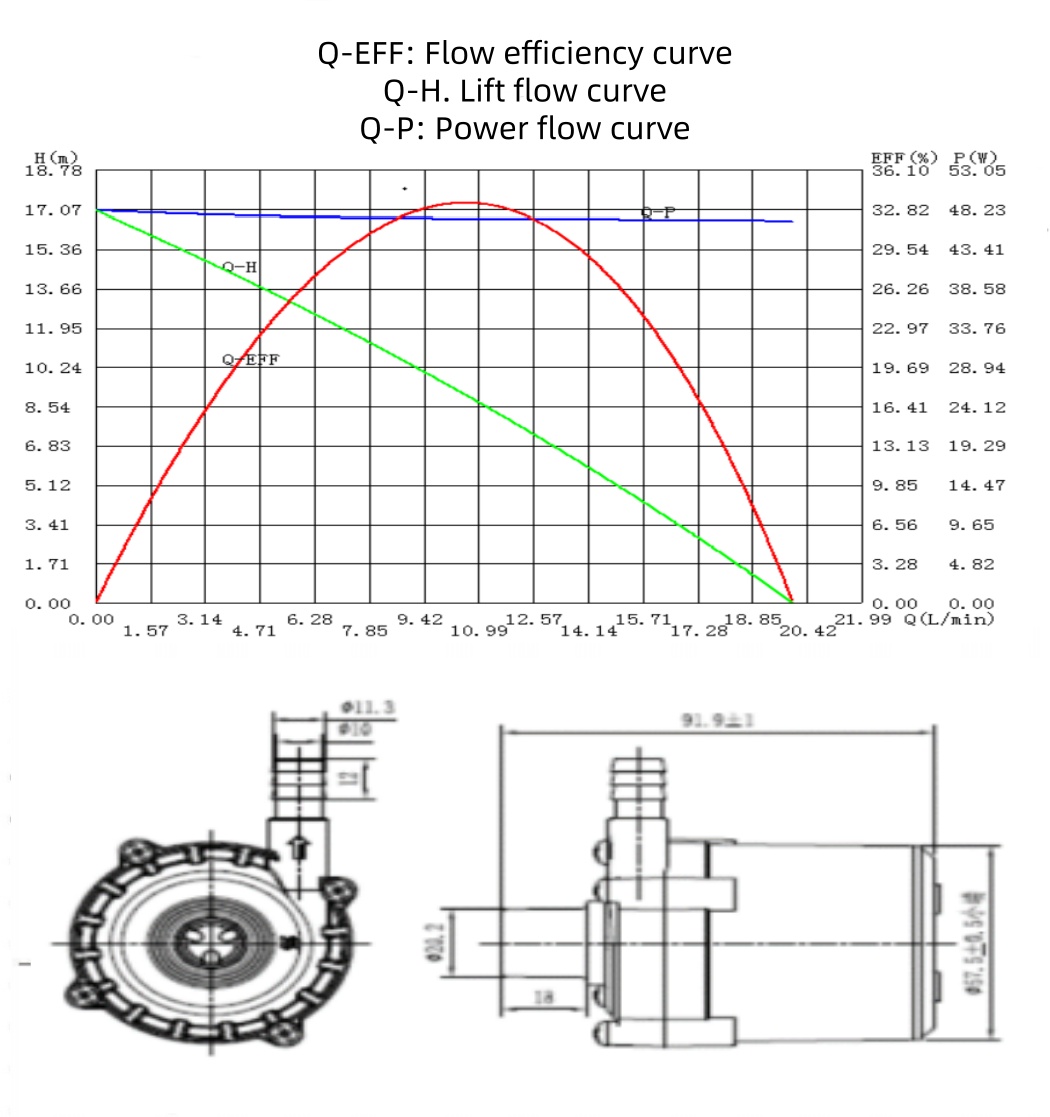

Specifications

Small size — compact enough to fit inside smart toilet housing
Long lifetime — engineered for extended use
Lower noise — designed for quiet operation
Dry-running protection — prevents damage when water is absent
Over-current protection — safeguards motor from electrical overload
Over-voltage protection — protects against voltage spikes
Under-voltage protection — protects against voltage drops
Over-temperature protection — prevents overheating damage
Constant power — maintains stable output performance
Static seal design — helps prevent leakage

MODEL: CWP060D
		AMBIENT TEMP	-25~55℃
		HUMIDITY	SUBMERSIBLE
		MEDIUM	PURE WATER/ANTIFREEZE
		MEDIUM TEMP	0~50℃
		WATERPROOF	IP68
		CONSTANT/CONTINUOUS PRESSURE	1.5MPa/0.5MPa
SPECIFICATION		FEATURE
RATED VOLTAGE	12 V DC	COLOR	BLACK
RATED CURRENT	4.2(1±10%)A	WEIGHT	447 g
RATED POWER	50(1±10%)W	NOISE	≦ 40dB@1m
MAX FLOW	50(1±10%) L/min	LIFETIME	≧20 0000TIMES（15SON，15SOFF）
MAX HEAD	8±1 m	INSULATION	F（155℃）

Key Feature

Purpose-built for smart toilet pressure boosting applications
Comprehensive protection system for long-term reliability
IP68-rated design for waterproof operation (please confirm for your specific application)
Static seal design helps prevent leakage
Suitable for high-rise and low-pressure environments

Need a tailored Home Water Pressure Booster Pump solution for your smart toilet project? Send your voltage, flow, head, and installation requirements to get a quote from RETO.

Frequently Asked Questions (FAQ)

What is the primary application of the CWP060D DC water pump?

The CWP060D DC water pump is purpose-built as a pressure increasing pump integrated into smart toilet systems. It addresses weak flushing, low or unstable inlet water pressure, especially in high-rise buildings or low-pressure environments.

What built-in protection features are included in this pump?

This pump features a comprehensive protection system including dry-running protection, over-current protection, over-voltage protection, under-voltage protection, over-temperature protection, and constant power output to maintain stable performance.

Is the CWP060D water pump fully waterproof?

Yes, the pump carries an IP68 waterproof rating and utilizes a static seal design to effectively prevent water leakage, making it reliable for submersible and humid environments within smart toilet housings.

What are the core technical parameters of the CWP060D pump?

The pump operates on a 12V DC rated voltage with a rated power of 50W, delivering a max flow rate of 50 L/min and a max head height of 8 meters, with operational noise controlled below 40dB at 1 meter.

Can this pump solution be customized for specific project needs?

Yes, custom solutions can be tailored according to your specific voltage, flow rate, head requirement, and installation constraints for smart toilet manufacturing projects.
