With a rated power of 50W, the potable water booster pump achieves a maximum flow of 38L/min, striking an ideal balance between energy efficiency and robust performance—ensuring stable flushing and cleaning functions under varying water pressure conditions.

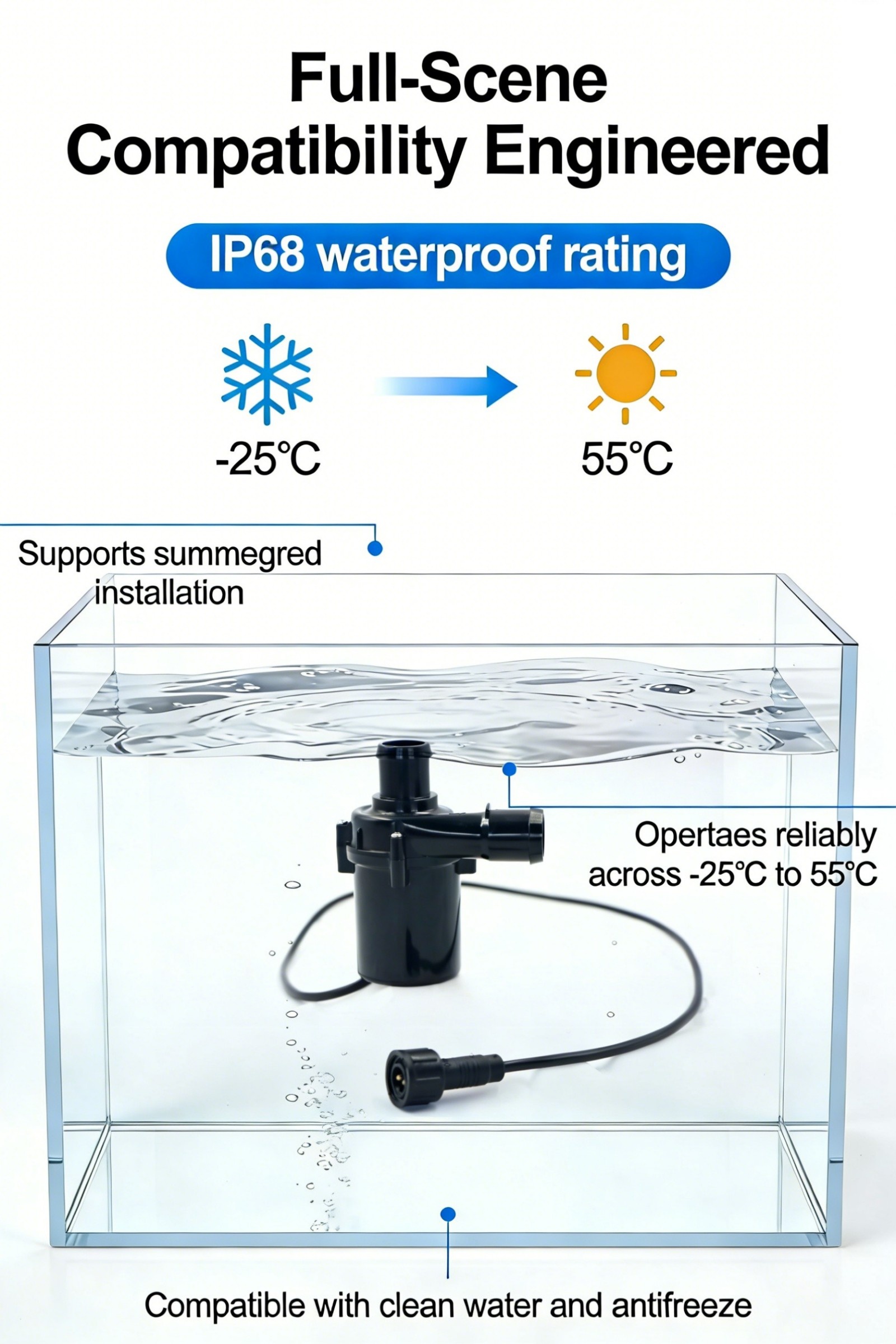

Engineered with an IP68 waterproof rating, our mains water pressure booster pump supports submerged installation and operates reliably across a wide temperature range of -25℃ to 55℃. It is compatible with clean water and antifreeze, adapting to diverse climates and application scenarios for true full-scene coverage.

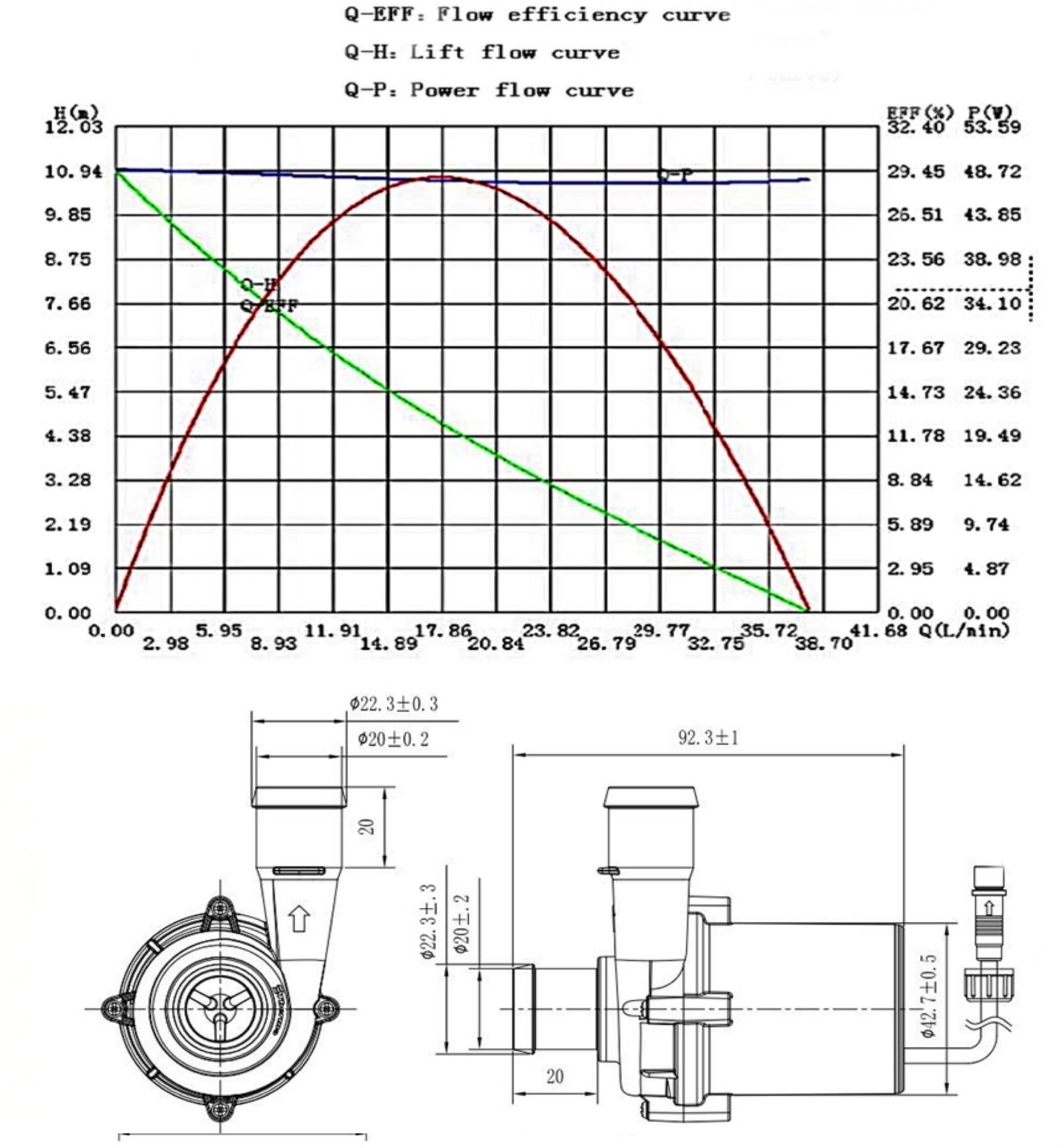

| MODEL: CWP035A | |||
|
AMBIENT TEMP | -25~55℃ | |
| HUMIDITY | SUBMERSIBLE | ||
| MEDIUM | PURE WATER/ANTIFREEZE | ||
| MEDIUM TEMP | 0~50℃ | ||
| WATERPROOF | IP68 | ||
| CONSTANT/CONTINUOUS PRESSURE | 1.5MPa/0.5MPa | ||
| SPECIFICATION | FEATURE | ||
| RATED VOLTAGE | 24V DC | COLOR | BLACK |
| RATED CURRENT | 4.2(1±10%)A | WEIGHT | 230g |
| RATED POWER | 50(1±10%)W | NOISE | ≦ 40dB@1m |
| MAX FLOW | 38(1±10%) L/min | LIFETIME | ≧200000 TIMES（15S ON, 15S OFF） |
| MAX HEAD | 10.5±1 m | INSULATION | F（155℃） |
All pump types have undergone rigorous durability testing, with a service life exceeding 200,000 start-stop cycles and built-in electrical protections for long-term safety and stability. We also offer flexible customization options—including flow parameters, port configurations, and ingress protection ratings—to meet the unique requirements of different brands and integrated system designs.
From lightweight water transfer to efficient pressure boosting and full-scene compatibility, our 12V DC small water booster pump series delivers precisely matched power for a wide range of smart toilet applications.
Custom OEM solutions. Contact RETO today.
The CWP035A smart toilet booster pump features a rated power of 50W (24V DC) and achieves a maximum flow rate of 38 L/min with a maximum head of 10.5 meters.
Yes, it is engineered with an IP68 waterproof rating, allowing full submersible installation and long-term reliable performance under water.
The pump operates in ambient temperatures from -25℃ to 55℃ and media temperatures from 0℃ to 50℃. It is compatible with both pure water and antifreeze media.
The pump has a tested service life exceeding 200,000 start-stop cycles (15s ON / 15s OFF) and operates at low noise levels (≦ 40dB at 1 meter distance).
Yes, RETO provides flexible customization options including flow parameters, port configurations, and ingress protection ratings to meet custom brand requirements.
