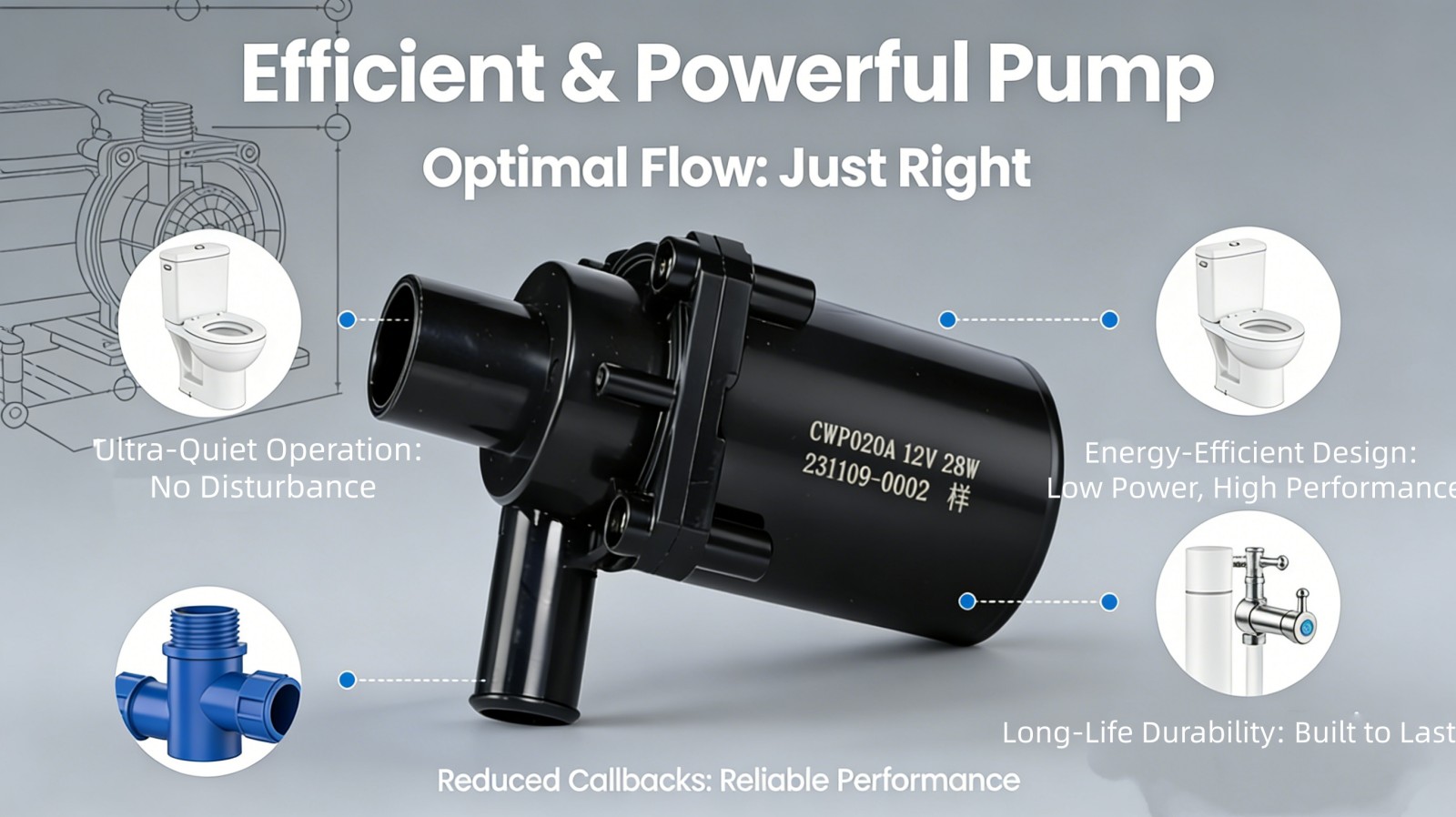

Same work, less power. A smart toilet pump cycles dozens of times a day. We kept rated power extremely low without compromising performance. When flushing, it delivers solid pressure; when finished, it stops instantly—no idling, no waste. Over time, savings alone can pay for the pump itself.
Handles complex pipe runs with ease. Smart toilet installations vary from floor-mounted to wall-hung with long bends. We built this inline water booster pump with generous head capacity, ensuring consistent water pressure even through twisted or elevated pipes. Flushes stay strong and clean every time.
Fast fill, quick drain, no clogging. Used as a low pressure water pump, it handles both jobs effortlessly—fills quickly, drains smoothly, and completes the entire flush cycle without delays or backups.

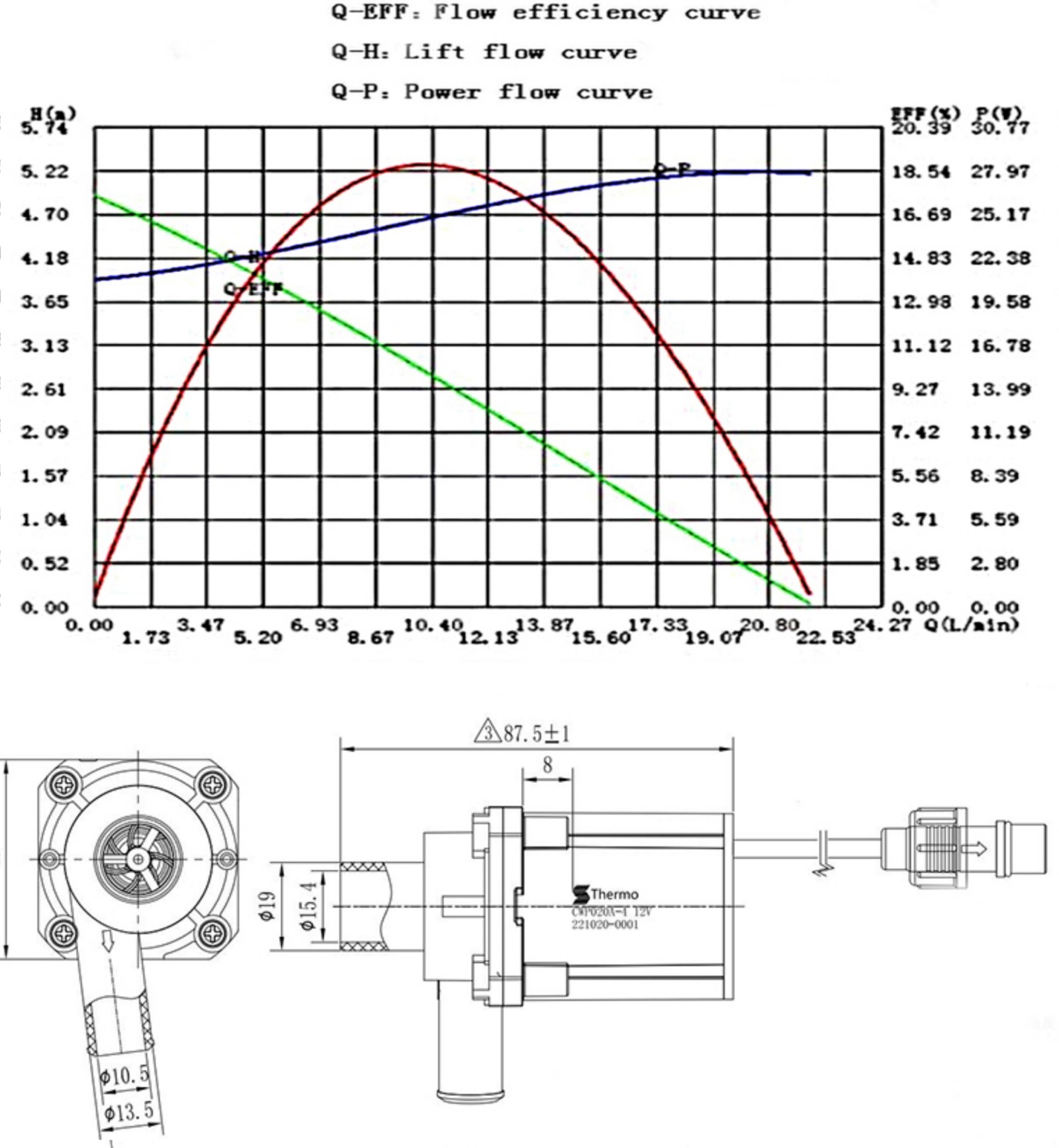

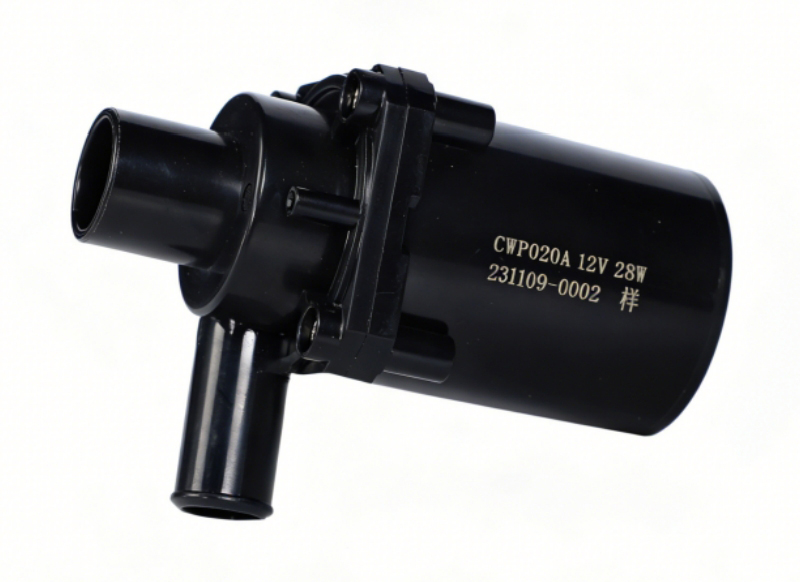

This specification sheet for the CWP020G/F DC water pump, paired with a product photo, outlines core performance metrics like rated voltage, power, flow and head, plus key features such as waterproofing, wide temperature tolerance and long service life, clearly presenting the product's technical specs.
| MODEL: CWP020A | |||
|
AMBIENT TEMP -25~55℃ |
HUMIDITY SUBMERSIBLE |
|
| MEDIUM PURE WATER/ANTIFREEZE |
MEDIUM TEMP 0~50℃ |
WATERPROOF IP68 |
CONSTANT/CONTINUOUS PRESSURE 1.8MPa/0.5MPa |
| SPECIFICATION | FEATURE | ||
| RATED VOLTAGE | 12V DC | COLOR | BLACK |
| RATED CURRENT | 2.33(1±10%)A | WEIGHT | 211 g |
| RATED POWER | 28(1±10%)W | NOISE | ≦ 40dB@1m |
| MAX FLOW | 22±1 L/min | LIFETIME | ≧200,000 cycles |
| MAX HEAD | 4.5±0.5 m | INSULATION | F（155℃） |
A smart toilet doesn't need a muscle-bound pump. It needs one that's efficient, powerful enough, and flows just right. We got all three right. You install it, your customers enjoy it, and you worry less about callbacks.
Custom OEM solutions. Contact RETO today.
The pump operates on 12V DC with a rated current of 2.33(1±10%)A and a rated power of 28(1±10%)W, providing high efficiency with minimal power usage.
The CWP020A features a maximum flow rate of 22±1 L/min and a maximum head of 4.5±0.5 m, ensuring fast tank refill and handling elevated or complex pipe runs effortlessly.
It comes with an IP68 waterproof rating (submersible capability). It withstands ambient temperatures from -25℃ to 55℃ and medium temperatures from 0℃ to 50℃.
The noise level is engineered to be extremely low, measuring ≦ 40dB at a 1-meter distance, ensuring silent and smooth flushing operations.
The pump is designed for high reliability and durability, with an estimated lifetime of ≧ 200,000 continuous flushing cycles.
Yes, RETO provides custom OEM solutions tailored to specific smart toilet design specs and mounting requirements. Contact RETO directly for details.
