China 24V DC External Pump to Boost Water Pressure Factories, Factory

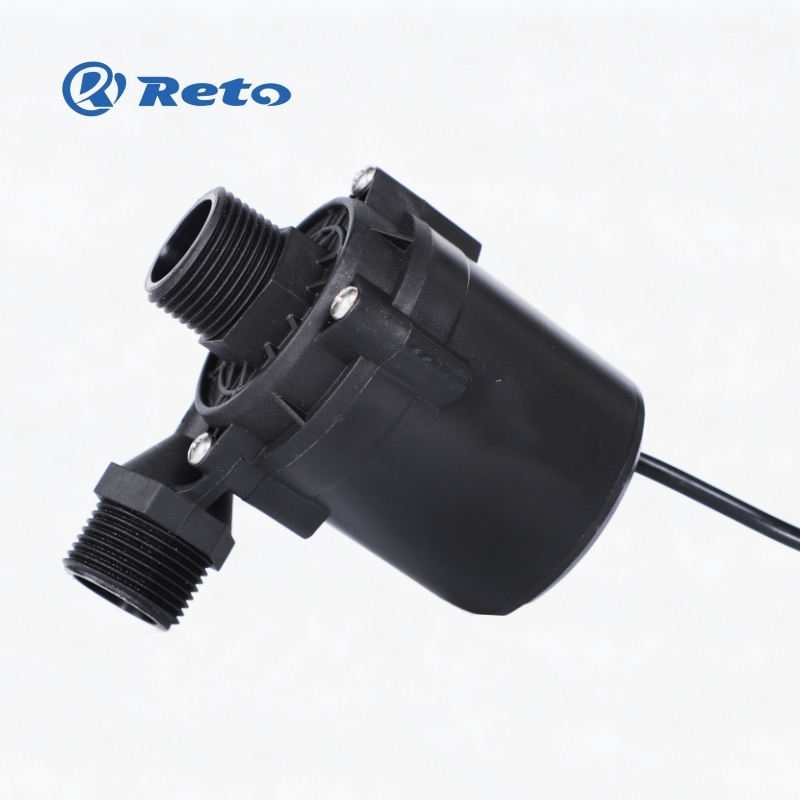

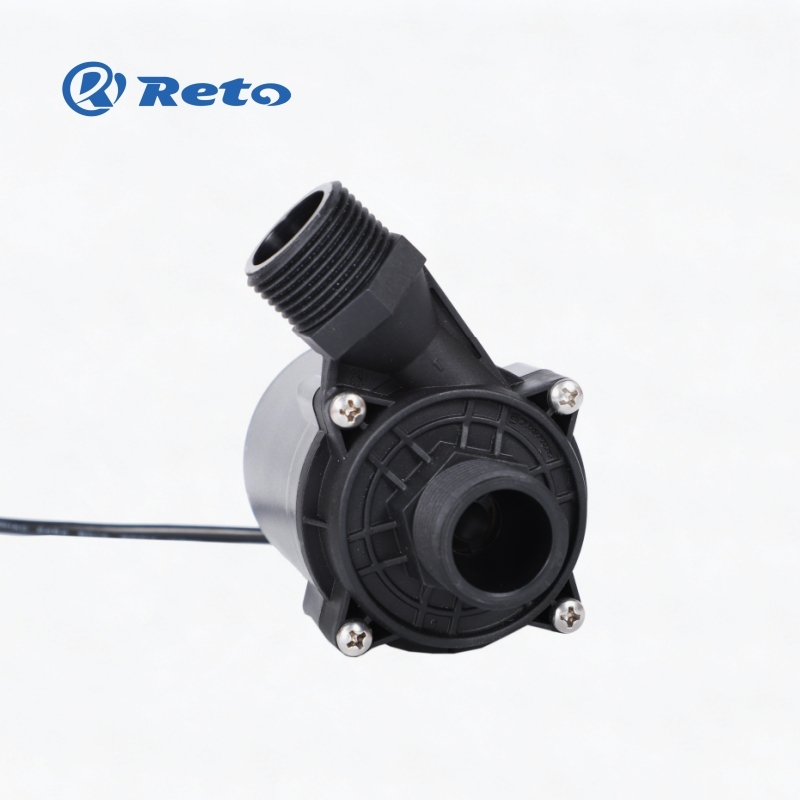

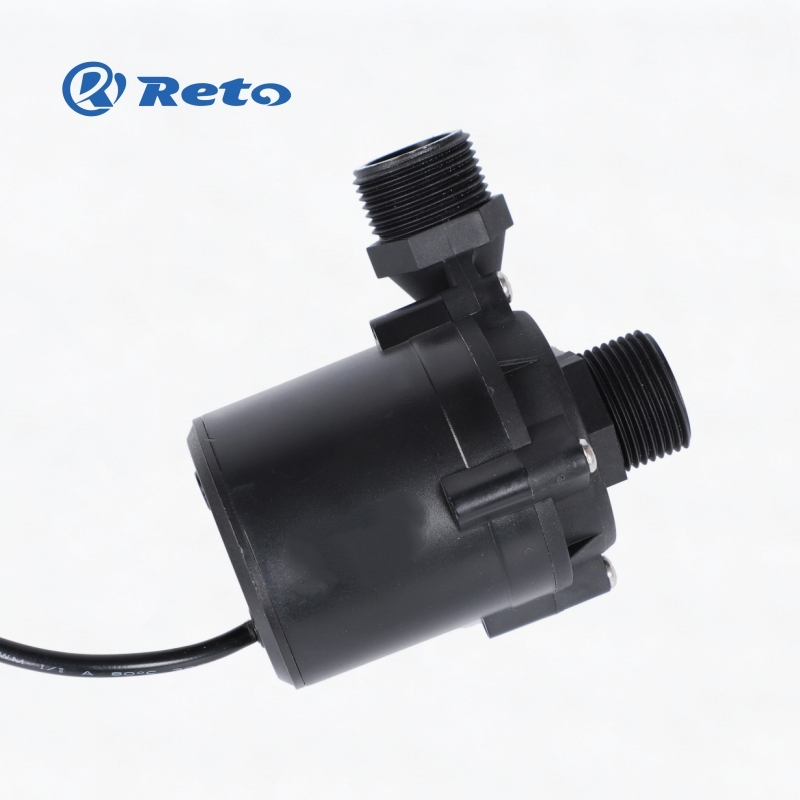

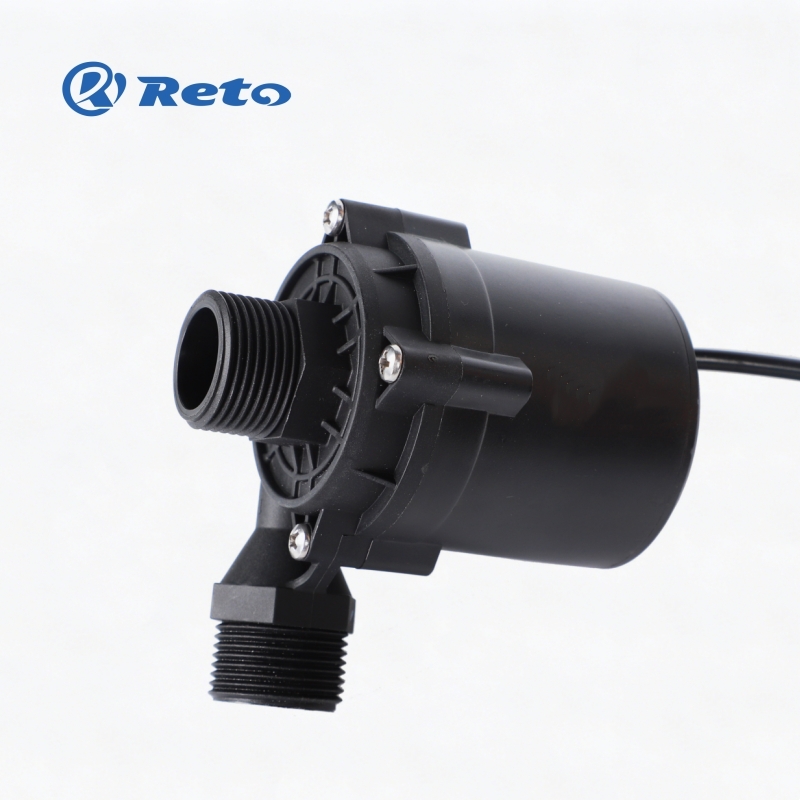

Name: BLDC Water Pump
Brand: RETO

Our micro submersible water pump powers smart toilets with quiet reliability. IP68-rated for submerged operation, it withstands >200K cycles, ensuring enduring performance and consistent water flow for years.

Model No : CWP060A

RATED POWER: 60(1±10%)W

MAX FLOW:23(1±10%)±1 L/min

MAX HEAD:14±1 m

Send Inquiry

Product Description

Product Details

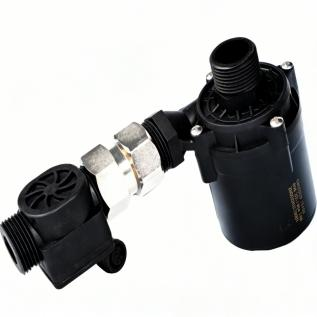

Equipped with a high-efficiency DC motor, the dc motor water pump delivers a maximum flow of 23L/min and a head height of up to 14m. Whether in high-rise apartments or older buildings with limited water pressure, it provides the robust flushing power needed for reliable cleaning performance.

We understand the importance of a quiet bathroom environment. The pump to boost water pressure actively enhances supply pressure while maintaining noise levels at ≤45dB—barely perceptible, ensuring a calm and comfortable user experience.

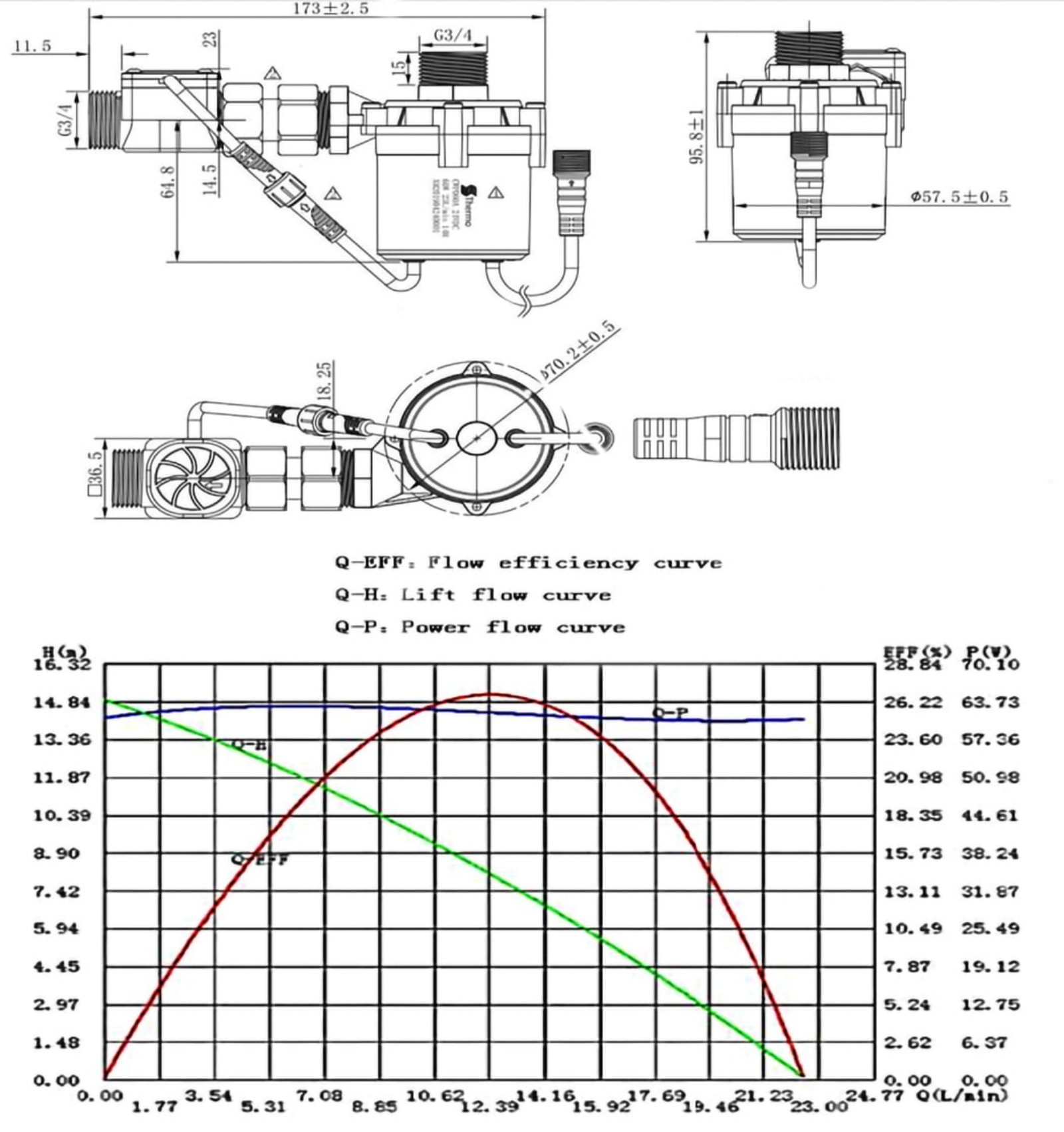

Specification

DC pump purpose-built for smart toilet and sanitary system integration
Fully waterproof and rigorously tested for long-lasting reliable operation
Low-noise performance with steady, consistent flow and pressure output

MODEL: CWP060A
		AMBIENT TEMP	-25~55℃
		HUMIDITY	Below 90% RH
		MEDIUM	PURE WATER/ANTIFREEZE
		MEDIUM TEMP	0~50℃
		WATERPROOF	IP68
		CONSTANT/CONTINUOUS PRESSURE	1.8MPa/0.5MPa
SPECIFICATION		FEATURE
RATED VOLTAGE	24V DC	COLOR	BLACK
RATED CURRENT	2.5(1±10%)A	WEIGHT	575g
RATED POWER	60(1±10%)W	NOISE	≦ 40dB@1m
MAX FLOW	23(1±10%) L/min	LIFETIME	≧200000 TIMES (15S ON, 15S OFF)
MAX HEAD	14±1 m	INSULATION	F (155℃)

Feature

All pump types have undergone rigorous durability testing and feature built-in electrical protections for long-term safety and stability. We also offer flexible customization options—including flow parameters, port configurations, and ingress protection ratings—to meet the unique requirements of different brands and integrated system designs.

From micro submersible space optimization to powerful DC motor output and pressure-boosted reliability, our DC pump series delivers precisely matched power for a wide range of smart toilet applications.

Your design, our pump. Contact RETO for OEM support.

Frequently Asked Questions

Q1: What is the main application of the CWP060A booster pump?

The CWP060A DC booster pump is purpose-built for smart toilet and sanitary system integration, providing stable flushing power and pressure boosting for bidets and modern toilets.

Q2: What is the maximum flow rate and head height of this DC motor pump?

This high-efficiency 24V DC pump delivers a maximum flow rate of up to 23 L/min and a maximum head height of 14 ±1 meters.

Q3: How quiet is the pump during operation?

The pump is designed for low-noise performance, keeping operational noise levels at or below 45dB (and ≦ 40dB at 1 meter), ensuring a peaceful bathroom environment.

Q4: What is the waterproof rating of this water booster pump?

The pump features an IP68 waterproof rating, ensuring safe, long-lasting, and reliable operation even in wet environments or continuous water contact.

Q5: Is customization or OEM support available for specific system designs?

Yes, RETO provides flexible customization options including flow parameters, port configurations, and protection ratings tailored to your specific system requirements.
